Morse Micro MM6108-MF08651-US Wi-Fi HaLow® Module

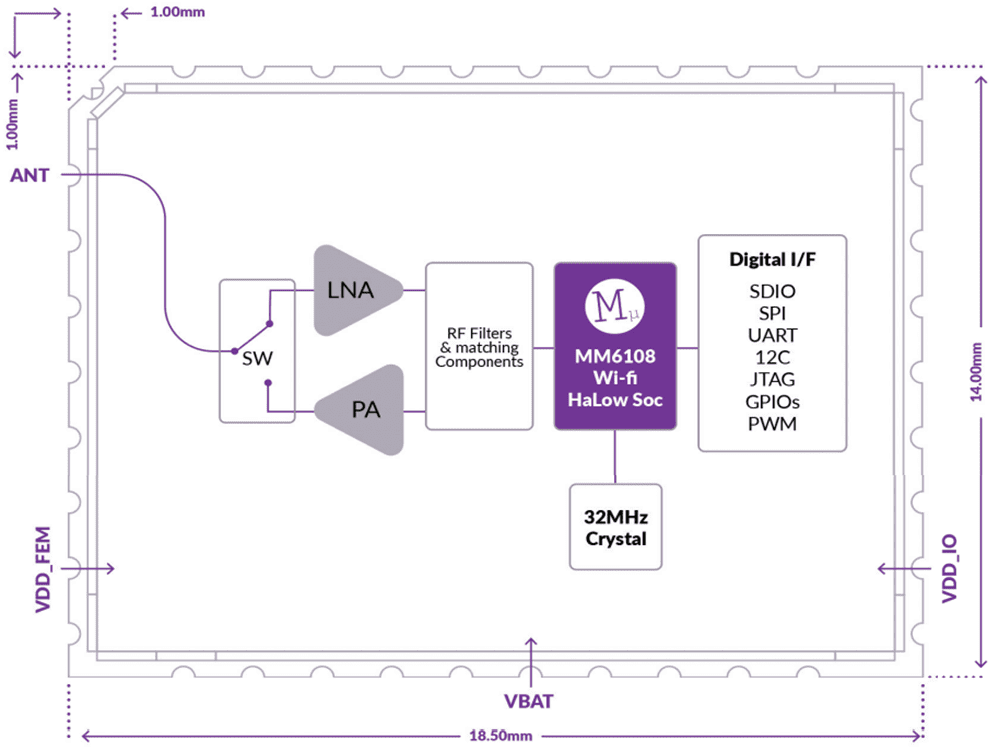

Morse Micro MM6108-MF08651-US Wi-Fi HaLow® Module adheres to the IEEE 802.11ah standard and supports data rates up to 32.5Mbps between 902MHz and 928MHz. The Morse Micro MM6108-MF08651-US boasts long-range capability, low power consumption, and superior RF performance. Equipped with features like ultra-long-reach PA, high linearity LNA, T/R switch, and a 32MHz crystal oscillator, the device simplifies Wi-Fi HaLow connections to external hosts. The module is ideal for transitioning from previous RF technology and supports the latest WPA3 security protocols.

Features

Ultra-long-range, low-power Wi-Fi HaLow module for IoT applications
Power management unit (PMU) supporting ultra-low-power operation
Single-stream maximum data rate of 32.5Mbps
GPIO/UART/I²C/PWM peripheral options
Radio supporting worldwide sub-1GHz bands

SDIO 2.0 and SPI host interface options
802.11ah OFDM PHY supporting WFA Wi-Fi HaLow certification
Wide spectrum of security features including WPA3
802.11ah MAC supporting WFA Wi-Fi HaLow certification
1/2/4/8MHz channel bandwidth

Applications

Surveillance cameras and sensors
Cloud connectivity
Building automation systems (BAS)
Machine performance monitors and sensors
Building access control and security
Drone video and navigation communications

Rural internet access
Utility smart meters and intelligent grids
Industrial automation controls
Smart home automation
Wi-Fi HaLow access points and bridges
Wi-Fi HaLow client adapters/dongles
