Monolithic Power Systems (MPS) MPQ4418A Synchronous Step-Down Converter

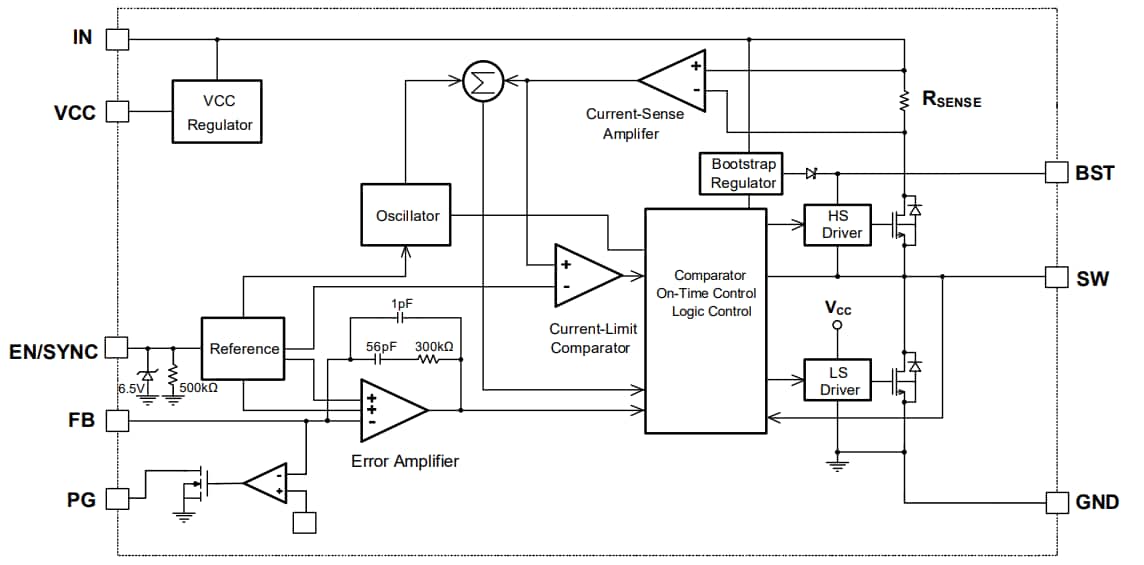

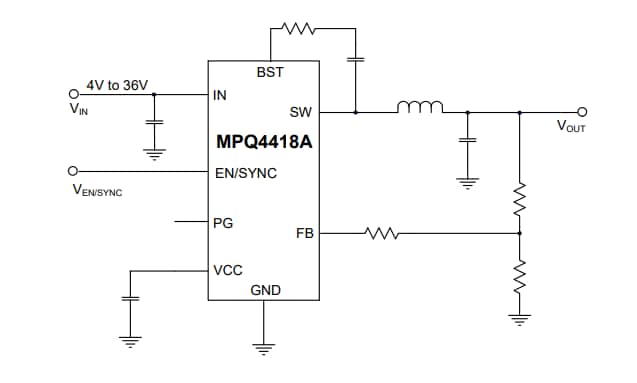

Monolithic Power Systems (MPS) MPQ4418A Synchronous Step-Down Converter achieves up to 0.6A of continuous output current across a wide input voltage range of 4V to 36V. This step-down converter offers high efficiency in synchronous mode across the entire I_OUT range. The current control mode provides a fast transient response and improves loop stabilization. The MPQ4418A step-down converter offers 410kHz default switching frequency, 200kHz to 2.2MHz synchronized external clock, and 90mΩ internal low R_DS(ON). Protection features include Over-Current Protection (OCP) with hiccup mode and thermal shutdown. Typical applications include automotive, industrial control systems, and distributed power systems.

Features

Wide 4V to 36V operating input voltage (V_IN) range
Configurable output voltage (V_OUT) from 0.8V
Internal Low-R_DS(ON) 90mΩ high-side MOSFET (HS-FET) and 55mΩ low-side MOSFET (LS-FET)

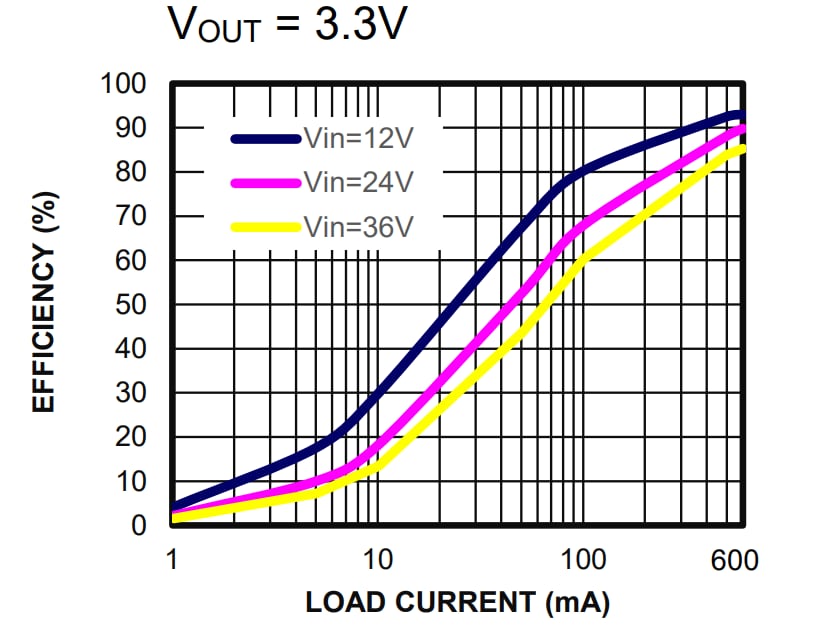

High-efficiency synchronous mode operation
410kHz default switching frequency (f_SW)
200kHz to 2.2MHz synchronized external clock
High duty cycle for automotive cold crank
