Monolithic Power Systems (MPS) MPQ4228-Q Step-Down Converter with Charging Port

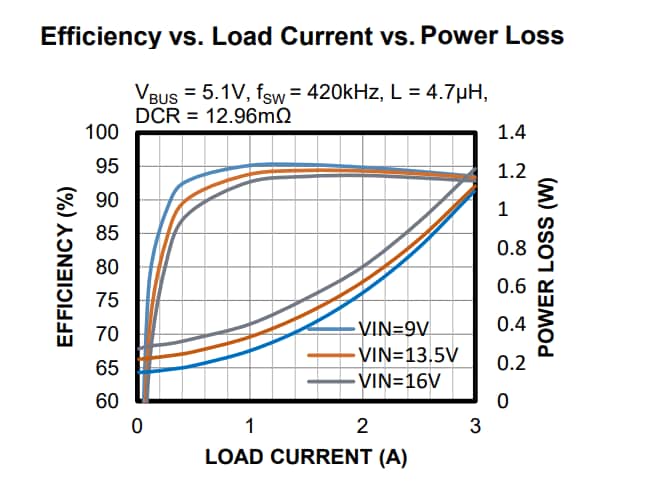

Monolithic Power Systems (MPS) MPQ4228-Q Step-Down Converter with Charging Port offers a single USB current-limit switch and Type-C™ 5V at 3A mode configuration channel designed for USB port applications. The device provides a 3A output current across a wide input supply range, with superior load/line regulation.

The MPS MPQ4228-Q USB switch output is current-limited. The USB port supports Quick Charge 3.0 (QC3.0) mode and is backward compatible with DCP schemes for battery charging specification (BC1.2), Apple 3A divider mode, and 1.2V/1.2V mode without needing outside user interaction. The USB port also facilitates Type-C 5V at 3A DFP mode.

Fault protections contain hiccup current limiting, output over-voltage protection (OVP), DP/DM/CC1/CC2 short to battery, and thermal shutdown (TSD). The negative temperature coefficient (NTC) input monitors the external PCB or other components’ temperature(s).

The MPQ4228-Q requires a minimal number of available, standard external components and is housed in a QFN-22 (4mm x 4mm) package.

Features

DP/DM Support quick charge 3.0 mode class A
Backwards compatible with DCP schemes: BC1.2 short mode, Apple 3A divider mode, 1.2V/1.2V mode
Supports USB Type-C 5V at 3A DFP mode
NTC Over-temperature detection
Passed Apple MFI certification test
USB-IF Type-C certified
Independent USB On/Off control Pin: EN1
+145°C Internal load-shedding entry temperature
USB_OUT, DP/DM, CC1/CC2 Pins short-to-battery protection
Wide 4.2V to 36V continuous operating input range
Selectable switching frequency (420kHz or 2.2MHz with spread spectrum)
3A Output continuous current
Integrated 20mΩ Low R_DS(ON) MOSFET

Line drop compensation
Accurate 3.55A USB current limit
EN Shutdown discharge function
OCP, OVP, and OTP Fault indication
Frequency sync from 200kHz to 2.2MHz
Hiccup current limit for buck and USB
±8kV IEC 61000-4-2 Contact discharge ESD rating for CC1 and CC2 pins
±8kV IEC 61000-4-2 Contact discharge ESD rating with a small resistor, a capacitor on DP and DM pins
±15kV IEC 61000-4-2 Air discharge ESD rating for DP, DM, CC1, and CC2 pins
Available in a QFN-22 (4mm x 4mm) package with wettable flanks
AEC-Q100 Grade 1 available

Applications

Automotive USB QC3.0 charging ports
Automotive USB Type-C charging ports

Monolithic Power Systems (MPS) MPQ4228-Q Step-Down Converter with Charging Port

Features

Applications

Videos

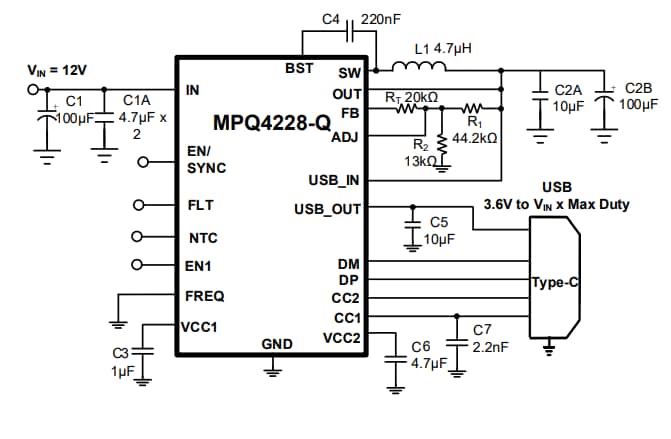

Typical Application
