Monolithic Power Systems (MPS) MPQ3413 Synchronous Step-Up Converters

Monolithic Power Systems (MPS) MPQ3413 Synchronous Step-Up Converters are designed to operate from an input voltage as low as 2.8V. These step-up converters also provide inrush current limiting and output Short-Circuit Protection (SCP). The MPQ3413 converters feature an integrated P-channel synchronous rectifier that improves efficiency and eliminates the need for an external Schottky diode. These step-up converters have a fixed switching frequency of 2.2MHz that allows for the use of small external components. The MPQ3413 step-up converters also offer internal compensation and Soft Start (SS), which reduces the number of external components. Typical applications include single-cell Li battery backup and automotive secondary regulation.

Features

Supports 5V/0.3A average output current (I_OUT)
2.8V to 4V input voltage (V_IN) range
5V fixed output voltage (V_OUT)
Internal Synchronous Rectifier (SR)
2.2MHz fixed switching frequency (f_SW)
52μA Quiescent current (I_Q)
<1μA shutdown current
True output disconnect from the input

Up to 85% efficiency
Internal compensation, inrush current limiting, and internal Soft Start (SS)
Small external components
Over-Voltage Protection (OVP), Short-Circuit Protection (SCP), and Over-Temperature Protection (OTP)
Available in a TSOT23-8 package
Available in AEC-Q100 Grade 1

Applications

Single-cell Li battery backup
Automotive secondary regulation

Monolithic Power Systems (MPS) MPQ3413 Synchronous Step-Up Converters

Features

Applications

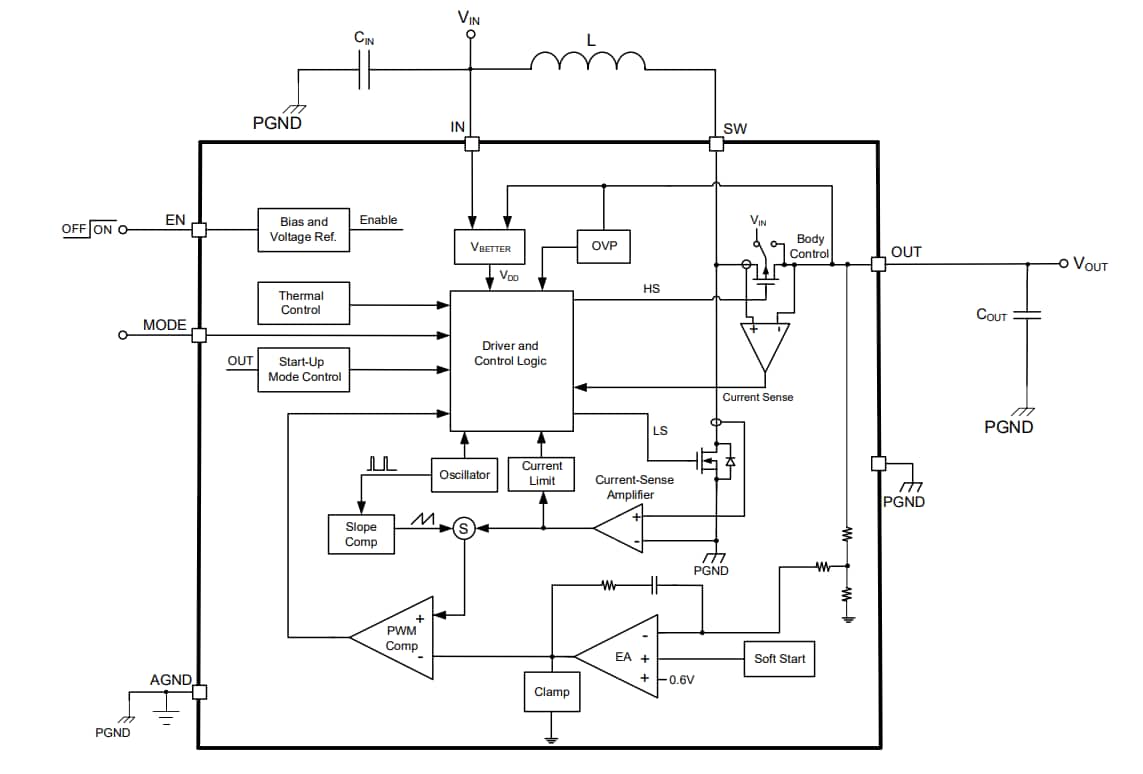

Block Diagram

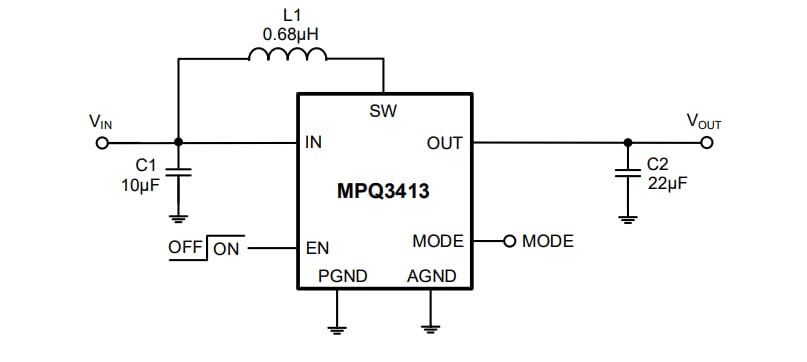

Typical Application Circuit
