Monolithic Power Systems (MPS) MPQ1923-AEC1 Half-Bridge Gate Drivers

Monolithic Power Systems (MPS) MPQ1923-AEC1 Half-Bridge Gate Drivers are high-frequency, N-channel MOSFET, half-bridge gate drivers. These drivers feature low dropout with 4.5V Under-Voltage Lockout (UVLO) falling threshold, 120V Bootstrap voltage (V_BST) range, 8A sink current, and 7A source current at 12V V_DD.The MPQ1923-AEC1 drivers are available in QFN-10 (4mm x 4mm) and QFN-8 (4mm x 4mm) packages. Typical applications include motor drivers, telecom half-bridge power supplies, avionics DC/DC converters, and active-clamp forward converters.

Features

Drives an N-channel MOSFET half-bridge
Low dropout with 4.5V Under-Voltage Lockout (UVLO) falling threshold
120V Bootstrap voltage (V_BST) range
On-chip bootstrap diode
20ns typical propagation delay
Drives a 1nF load with 7.2ns Rise Time (t_RISE) and 5.5ns Fall Time (t_FALL) at 12V V_DD
Available in QFN-10 (4mm x 4mm) and QFN-8 (4mm x 4mm) packages

7A source current at 12V V_DD
<5ns gate driver matching time delay
TTL-compatible input
<300µA Quiescent current (I_Q)
UVLO protection for the HS-FET and LS-FET gate drivers
8A sink current
Available in AEC-Q100 grade 1

Specifications

-40°C to 125°C operating junction temperature range
ESD ratings:
- ±2000V Human Body Model (HBM)
- ±500V Charged Device Model (CDM)

<50V/ns Slew rate (SW)
5V to 17V supply voltage range
260°C lead temperature
-65°C to 150°C storage temperature range

Applications

Motor drivers
Telecom half-bridge power supplies
Avionics DC/DC converters

Two-switch forward converters
Active-clamp forward converters

Monolithic Power Systems (MPS) MPQ1923-AEC1 Half-Bridge Gate Drivers

Features

Specifications

Applications

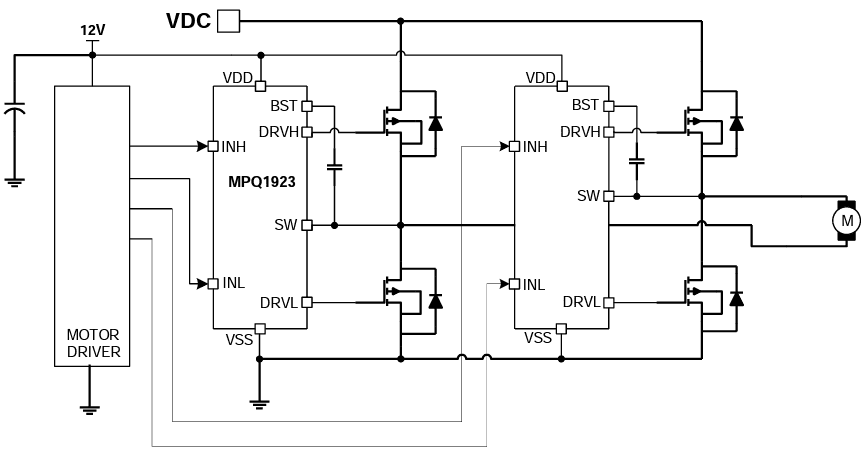

Typical Application Circuit Diagram

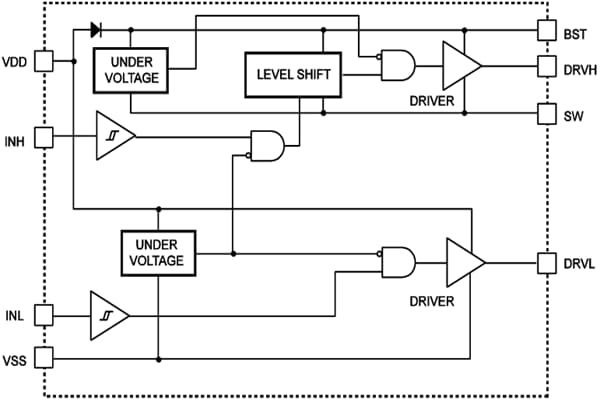

Functional Block Diagram
