Monolithic Power Systems (MPS) MPL-SE4030-330 33µH Semi-Shielded Inductor

Monolithic Power Systems (MPS) MPL-SE4030-330 33µH Semi-Shielded Inductor features a low DCR and stray field in a semi-shielded package design. The device offers a 33µH inductance, 10mΩ typ resistance, and a 6A rated current. The MPS MPL-SE4030-330 33µH semi-shielded inductor is ideal for battery-powered, embedded computing, and high-efficiency SMPS applications.

Features

Size of 4mm x 4mm x 3mm
Semi-shielded construction
Low DCR

Low stray field
Max operating temp of +125°C
RoHS/REACH-compliant, halogen-free

Applications

Battery-powered devices
High-efficiency SMPS

Embedded computing
Input filters

Specifications

Inductance measured at 100kHz, 100mA
Rated current will cause the coil temperature to rise ΔT of 40K
Saturation current will cause L to drop from 30% at +25°C ambient temperature
Saturation current will cause L to drop from 30% at +100°C ambient temperature

Electrical specifications measured at +25°C, 35% RH if not given differently
-40°C to +125°C (Including temp rise) operating temperature
-10°C to +40°C Tape and reel packaging
<50% RH Humidity

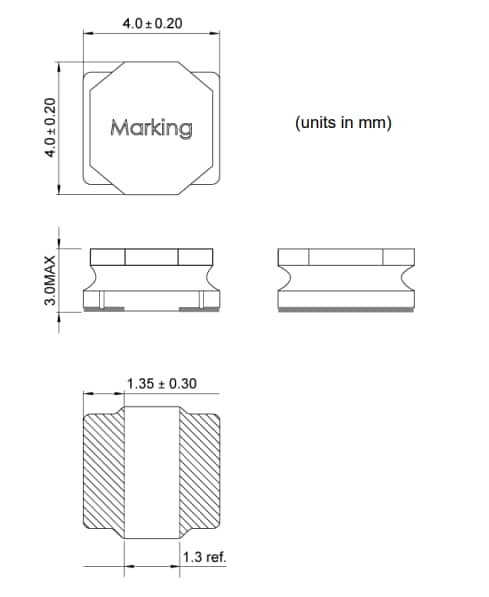

Dimensions mm

Mechanical Drawing - Monolithic Power Systems (MPS) MPL-SE4030-330 33µH Semi-Shielded Inductor
