Monolithic Power Systems (MPS) MP8792 Synchronous Step-Down Converters

Monolithic Power Systems (MPS) MP8792 Synchronous Step-Down Converters is a fully integrated, high-frequency, synchronous buck converter. The Monolithic Power Systems (MPS) MP8792 is a compact solution to deliver up to 12A of output current. With its wide input supply range, excellent load and line regulation, and high efficiency over a broad output current load range, the MP8792 is a versatile and reliable solution for various applications. Adopting internally compensated constant-on-time (COT) control, the MP8792 provides a fast transient response and makes loop stabilization effortless.

Features

Wide Input Voltage Range from 2.7V
- 2.7V to 16V with external 3.3V V_CC bias
- 4V to 16V with internal V_CC bias or external 3.3V V_CC bias
Differential output voltage remote sense
Configurable accurate, current limit level
12A output current
Low R_DS(ON) integrated power MOSFETs
Proprietary switching loss reduction technique
Adaptive COT for ultra-fast transient response
0.5% reference voltage across a 0°C to 70°C junction temperature range
1% reference voltage across a -40°C to +125°C junction temperature range

Stable with a zero-ESR output capacitor
Selectable pulse skip or forced CCM operation
Excellent load regulation
Output voltage tracking
Output voltage discharge
P_GOOD active clamped at a low level during power failure
Programmable soft-start time from 1ms
Pre-biased start-up
Selectable switching frequency from 600kHz, 800kHz, and 1000kHz
Non-latch OCP, UVP, OVP, UVLO, and thermal shutdown
Output adjustable from 0.6V to 90% of V_IN, up to 5.5V max
Available in a QFN (3mm x 4mm) package
The MPL-AY1265 inductor series matches best performance

Applications

FPGAs, high-definition TVs, and monitors
Communication systems
General power distribution systems

Monolithic Power Systems (MPS) MP8792 Synchronous Step-Down Converters

Features

Applications

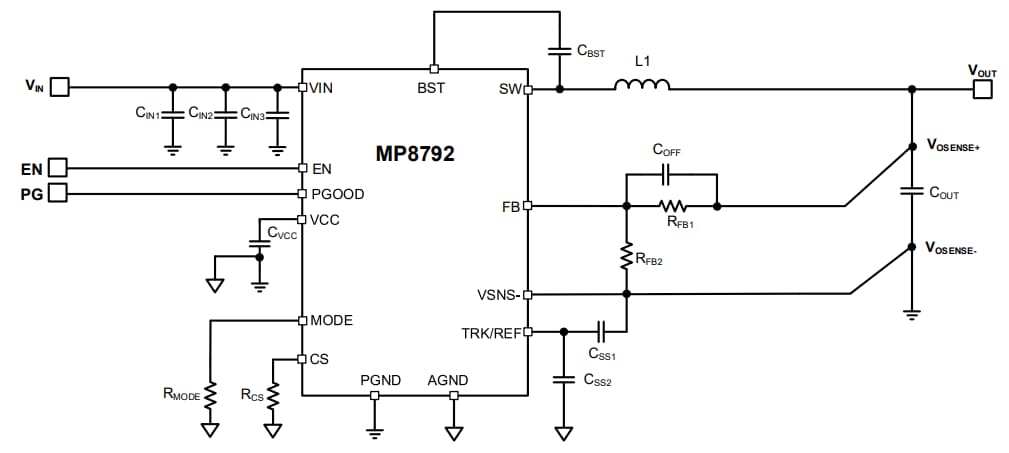

TYPICAL APPLICATION
