Monolithic Power Systems (MPS) MP86957 Gate Drivers

Monolithic Power Systems (MPS) MP86957 Gate Drivers achieve 70A of continuous output current over a wide input supply range. These Gate Drivers offer integration of drivers and MOSFETs which results in high efficiency due to optimal dead time and parasitic inductance reduction. The MP86957 offers many features to simplify system design and this small 5mmx6mm LGA device can operate from 100kHz to 3MHz frequency range. These drivers work through controllers with a tri-state PWM signal. The MP86957 comes with Accu-Sense^TM current sense to monitor the inductor current, and a temperature sensor to report junction temperature.

The MP86957 Gate Drivers feature temperature sense, 3V to 16V wide operating input range, 70A output current, and current limit fault flag. These drivers are used in server core voltage, power modules, and graphic card core regulators.

Features

3V to 16V wide operating input range
70A output current
Current sense: Accu-sense TM
Temperature sense
Accepts Tri-state PWM signal

Current limit fault flag
Over temperature fault flag
Low side catastrophic fault flag and protection
Available in a 5mmx6mm LGA package

Specifications

18V of supply voltage
95A of instantaneous current
150°C of junction temperature
260°C of lead temperature
-65°C to 150°C of the storage temperature range

3.0V to 16V of the supply voltage range
3.0V to 3.6V of the driver voltage range
3.0V to 3.6V of the logic voltage range
-40°C to 125°C of the operating junction temperature range

Applications

Server core voltage
Power modules

Graphic card core regulators

Monolithic Power Systems (MPS) MP86957 Gate Drivers

Features

Specifications

Applications

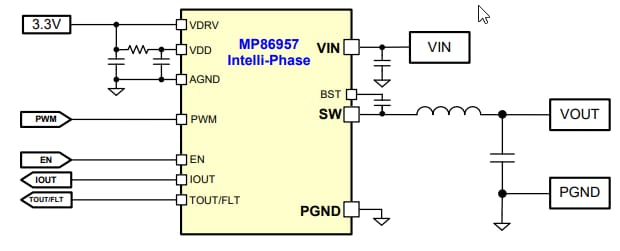

Application Circuit diagram

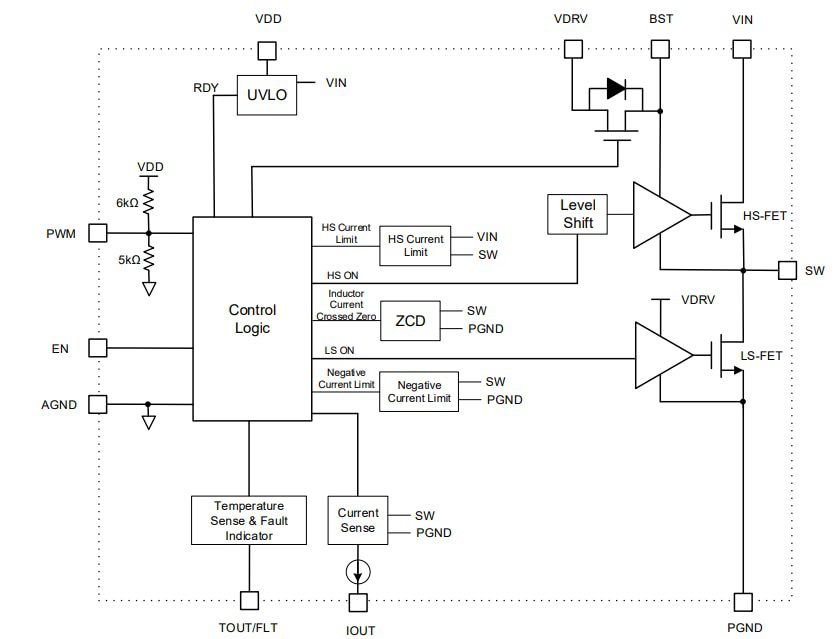

Block Diagram
