Monolithic Power Systems (MPS) MP7200 Synchronous Buck-Boost LED Drivers

Monolithic Power Systems (MPS) MP7200 Synchronous Buck-Boost LED Drivers are high-frequency and constant-current drivers with integrated power MOSFETs. These drivers offer a compact solution of 1.2A of continuous output current (I_OUT) across a wide input voltage (V_IN) range, with excellent load and line regulation. The MP7200 drivers feature constant-frequency hysteretic control that provides a fast transient response without loop compensation. In addition, these drivers feature Over-Current Protection (OCP), output Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), thermal derating, and thermal shutdown. The MP7200 drivers require a minimal number of readily available, standard external components and are available in a space-saving QFN-19 (3mm x 4mm) package.

Features

Synchronous mode for high efficiency
Fault indication
Output Over-Voltage Protection (OVP)
Over-Current Protection (OCP) with latch-off mode
Thermal shutdown

Configurable thermal derating via remote temperature sense (NTC pin)
Electromagnetic Interference (EMI) reduction technique
Available in a QFN-19 (3mm x 4mm) package
Available in a wettable flank package

Specifications

Wide 6V to 42V operating input voltage (V_IN) range
44mΩ/40mΩ low R_DS(ON) internal power MOSFETs
Configurable 1.2A buck-boost mode and 3A buck mode
Up to 2.3MHz default switching frequency (f_SW) for buck mode

1.15MHz f_SW for buck-boost mode with spread spectrum
Pulse-Width Modulation (PWM) dimming with 100Hz to 2kHz dimming frequency
500Hz internal two-step dimming with a configurable duty cycle
-40°C to 125°C junction temperature range

Applications

Turn indicator lights
Daytime Running Lights (DRLs)

Fog lights
Rear lights

Monolithic Power Systems (MPS) MP7200 Synchronous Buck-Boost LED Drivers

Features

Specifications

Applications

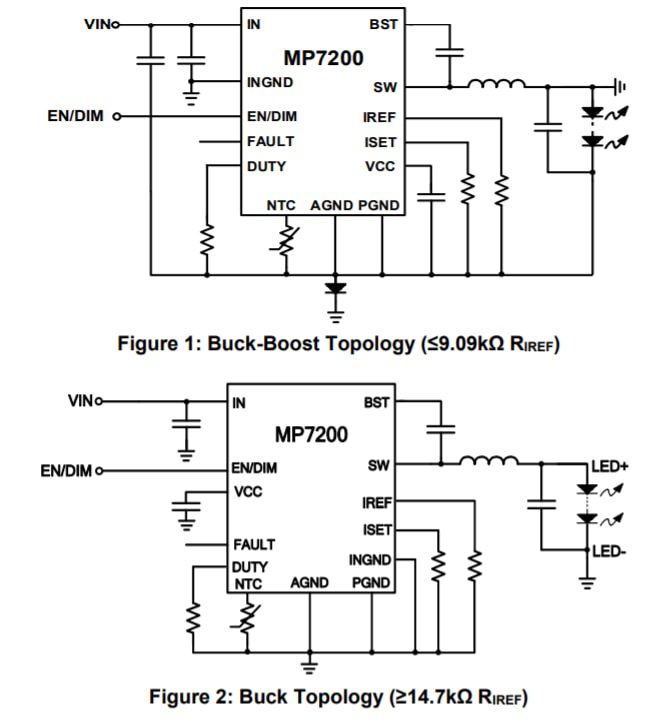

Typical Application Diagrams

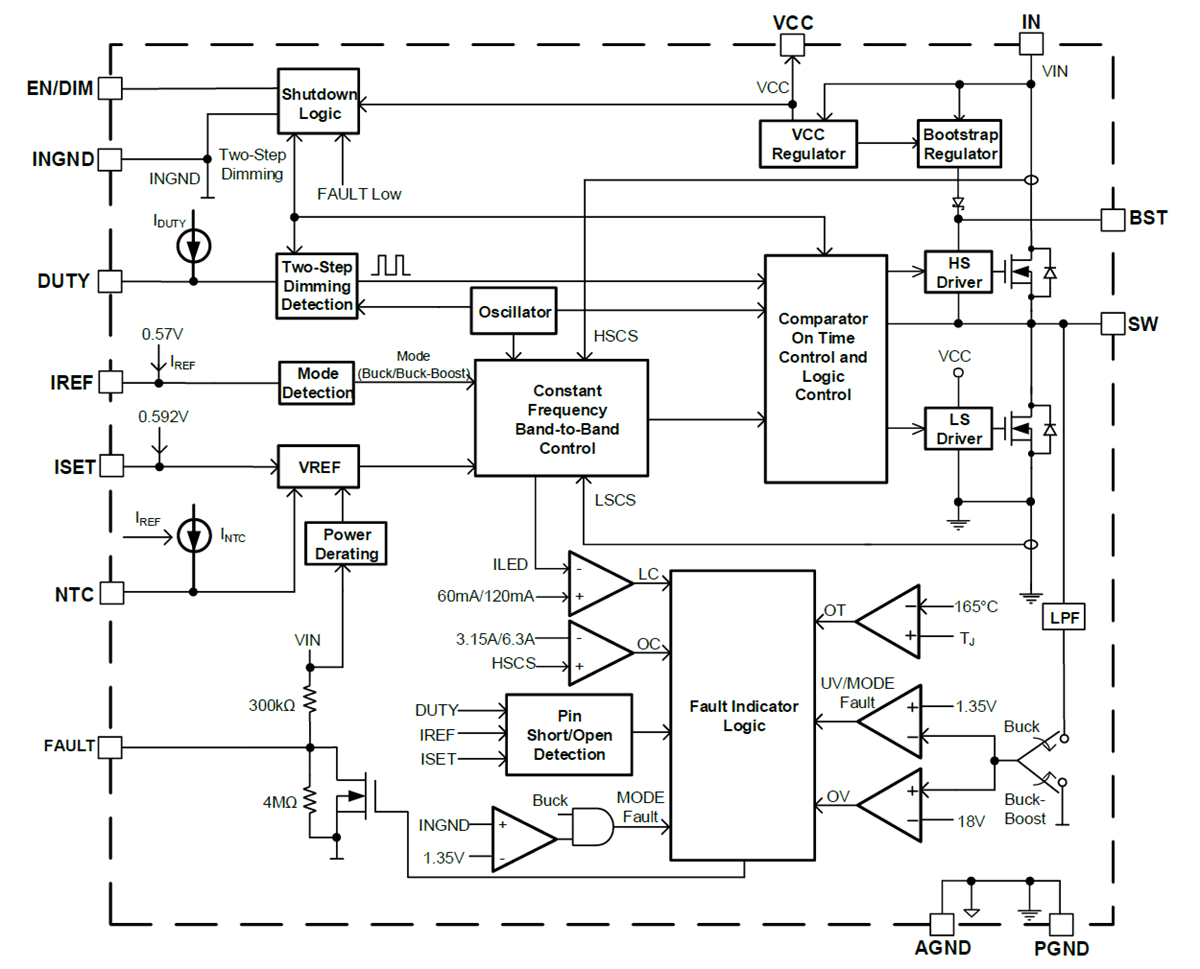

Block Diagram
