Monolithic Power Systems (MPS) MP6919 Fast Turn-off Intelligent Rectifier

Monolithic Power Systems (MPS) MP6919 Fast Turn-off Intelligent Rectifier for flyback converters integrates a 100V/13mΩ MOSFET and offers high-efficiency and power density than a diode rectifier. This device generates its own supply voltage and does not require auxiliary winding for high-side or low-side rectification. The MP6919 rectifier supports Continuous Conduction Mode (CCM), Discontinuous Conduction Mode (DCM), and quasi-resonant operations. The internal ringing detection circuitry prevents the MP6919 rectifier from falsely turning on during DCM or quasi-resonant operations. This rectifier is suitable for charger applications with a low output voltage requirement or any other adapter applications with the high-side set-up. The MP6919 rectifier is ideally used in laptop adapters, Quick Charger (QC) and USB Power Delivery (PD) chargers, and high-efficiency flyback converters.

Features

Integrated 100V/13mΩ MOSFET
Wide output range down to 0V
High-efficiency and power density than a diode rectifier
Does not require auxiliary winding for high-side or low-side rectification

Ringing detection prevents false turn-on during DCM operations
Compatible with energy star
Supports DCM, CCM, and quasi-resonant operations
Available in a SOIC-8 package

Specifications

110µA quiescent current
1.7W maximum power dissipation
14.1A continuous drain current at T_c=25°C
8.9A continuous drain current at T_c=100°C
50A pulsed drain current

-55°C to 150°C storage temperature range
-40°C to 125°C operating junction temperature range (T_J)
±1200V Human-Body Model (HBM)
±2000V Charged-Device Model (CDM)

Applications

Laptop adapters
QC and USB PD chargers
High-efficiency flyback converters

Monolithic Power Systems (MPS) MP6919 Fast Turn-off Intelligent Rectifier

Features

Specifications

Applications

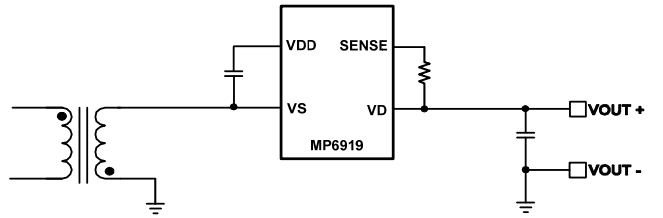

Typical Application Circuit

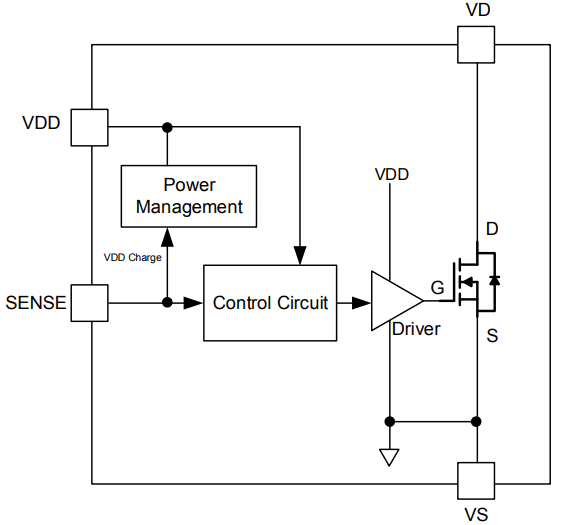

Functional Block Diagram
