Monolithic Power Systems (MPS) MP6652 18V Single-Phase BLDC Motor Drivers

Monolithic Power Systems (MPS) MP6652 18V Single-Phase BLDC Motor Drivers are ideal for fans and operate at 3V to 18V. The MPS MP6652 controls speed via PWM and includes a configurable speed curve function for flexible cooling fan applications. The device detects rotational speed through the FG/RD pin, producing high or low voltage based on the internal Hall comparator’s output, with higher speeds generating higher frequency signals.

Features

On-chip hall sensor
Wide 3V to 18V operating input voltage (V_IN) range
Integrated power MOSFETs
- Total 850mΩ high-side MOSFET (HS-FET) and low-side MOSFET (LS-FET)
Configurable starting duty cycle
Rotational speed indicator FG signal
Rotor lock protection fault indication
1kHz to 100kHz Pulse-Width Modulation (PWM) input frequency range

Fixed 27kHz output switching frequency (f_SW)
Configurable soft-on/off commutation angle (max 90°)
Configurable Soft Start (SS)
Rotor lock protection with auto-recovery
FG outputs 0.5x, 1x, or 2x original hall frequency
Thermal protection with auto-recovery
Built-in input Over-Voltage Protection (OVP) and Under-Voltage Lockout (UVLO) with auto-recovery
Available in TSOT23-6-SL and TSOT23-6-L packages

Applications

CPU and GPU fans
Brushless DC (BLDC) motors
Cooling fans

Monolithic Power Systems (MPS) MP6652 18V Single-Phase BLDC Motor Drivers

Features

Applications

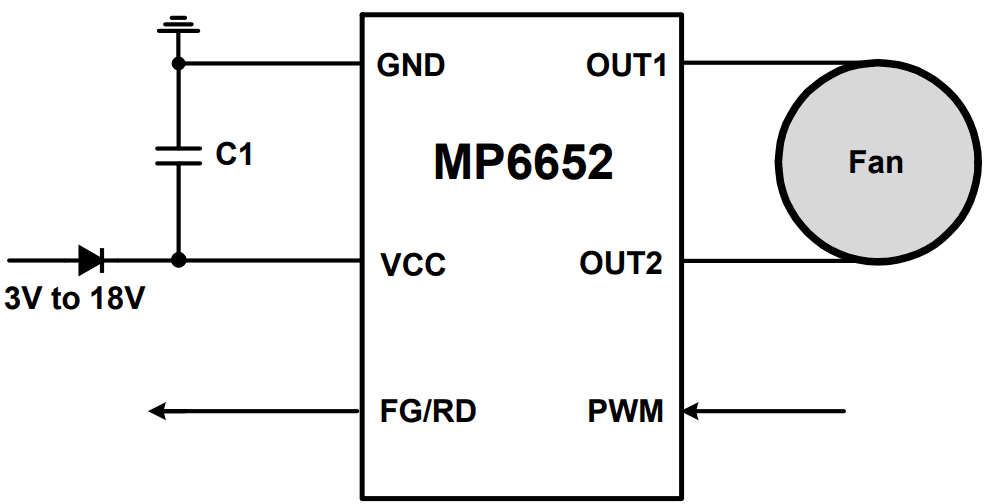

TYPICAL APPLICATION
