Monolithic Power Systems (MPS) MP6619 H-Bridge Motor Drivers

Monolithic Power Systems (MPS) MP6619 H-Bridge Motor Drivers feature a supply voltage up to 28V and deliver a motor current up to 5A. The MP6619 is designed to drive a brushed DC motor and offers cycle-by-cycle current limiting. The device provides full protection features, including over-current protection (OCP), input over-voltage protection (OVP), under-voltage lockout (UVLO), and thermal shutdown.

The MPS MP6619 H-Bridge Motor Drivers are housed in a QFN-19 (3mm x 3mm) package.

Features

Wide 5.4V to 28V operating input range
Up to 5A Peak output current
Internal H-bridge driver
Cycle-by-cycle current limiting
65mΩ R_DS(ON) for each half-bridge MOSFET
100% Duty cycle operation of H-bridge
1μA Shutdown mode

Output Short-Circuit Protection (SCP)
Input Over-Voltage Protection (OVP)
Under-Voltage Lockout (UVLO)
Over-temperature shutdown
Fault indication output
Available in a QFN-19 (3mm x 3mm) package

Applications

DC Motors
Solenoid/actuators

Monolithic Power Systems (MPS) MP6619 H-Bridge Motor Drivers

Features

Applications

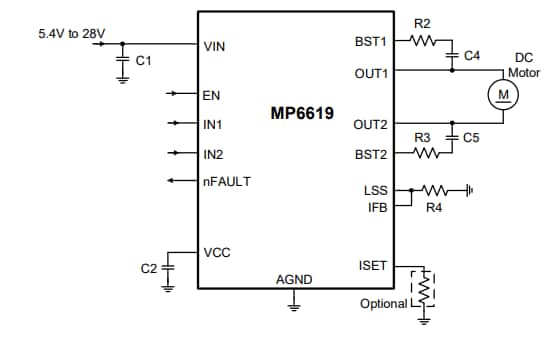

Typical Application

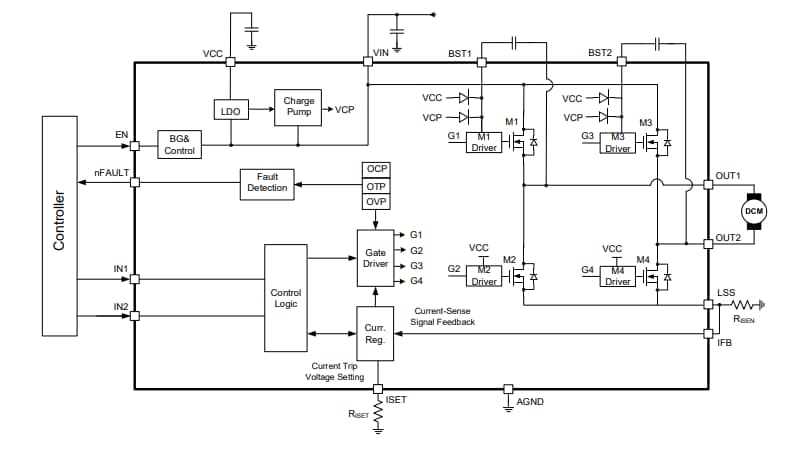

Block Diagram
