Monolithic Power Systems (MPS) MP6614 H-Bridge DC Motor Drivers

Monolithic Power Systems (MPS) MP6614 H-Bridge DC Motor Drivers are designed to drive reversible motors. These motor drivers integrate four N-channel power MOSFETs, and an internal charge pump generates the required gate driver voltages. The MP6614 motor drivers operate from a 5V to 35V input voltage range and deliver up to 2A continuous current (I_OUT). These motor drivers provide a Pulse-Width Modulation (PWM) input interface compatible with industry-standard devices. The MP6614 motor drivers feature Over-Current Protection (OCP), Short-Circuit Protection (SCP), Under-Voltage Lockout (UVLO), and Over-Temperature Protection (OTP). These motor drivers are available in a SOIC-8EP package. Typical applications include solenoid drivers and brushed DC motor drivers.

Features

Internal full H-Bridge driver supports 100% duty cycle
Simple and versatile logic interfaces
Cycle-by-cycle current regulation and limiting
Low standby circuit current
Over-Current Protection (OCP)

Thermal shutdown
Under-Voltage Lockout (UVLO)
Internal charge pump
Available in a thermally enhanced, surface-mounted SOIC-8EP package

Specifications

5V to 35V input voltage range (V_IN)
3.3V and 5V compatible logic supply
2A continuous output current (I_OUT)
2.6W continuous power dissipation (T_A = 25°C)

Low on-resistance (R_DS(ON)) per MOSFET:
- 280mΩ High-Side MOSFET (HS-FET)
- 220mΩ Low-Side MOSFET (LS-FET)
-40°C to 125°C operating temperature range

Applications

Solenoid drivers
Brushed DC motor drivers

Monolithic Power Systems (MPS) MP6614 H-Bridge DC Motor Drivers

Features

Specifications

Applications

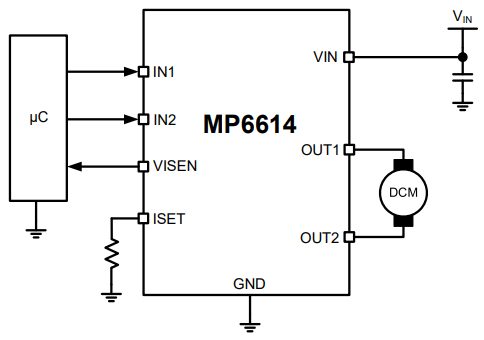

Typical Application Circuit Diagram

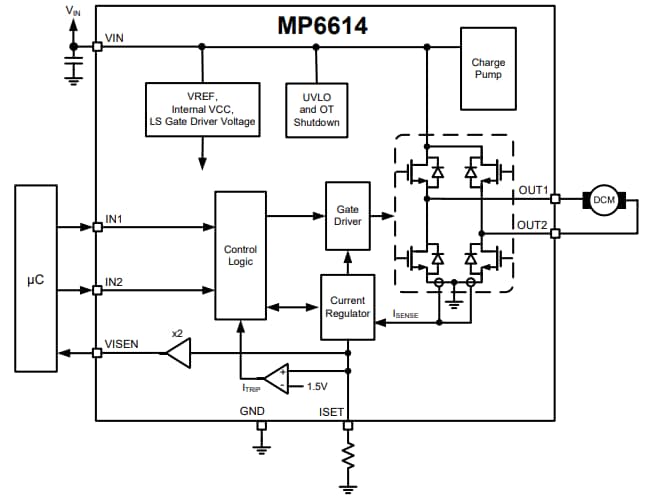

Block Diagram
