Monolithic Power Systems (MPS) MP6605E Gate Driver ICs

Monolithic Power Systems (MPS) MP6605E Gate Driver ICs are 4-channel Low-Side (LS) driver ICs with a serial interface. These driver ICs feature Low-Side MOSFET (LS-FET) switches and High-Side (HS) clamp diodes, up to 60V supply voltage, 1.5A maximum output current, and 350mΩ MOSFET ON resistance. The MP6605E ICs also feature Over-Current Protection (OCP), Under-Voltage Lockout (UVLO) protection, and thermal shutdown. These gate driver ICs are ideally used in unipolar stepper motors and selenoid drivers and are available in QFN-24 (4mm x 4mm) package.

Features

Wide 4.5V to 60V input voltage (V_IN) range
60V maximum winding clamp voltage (V_CLAMP)
Four Low-Side MOSFETs (LS-FETs) and clamp diodes
350mΩ MOSFET ON resistance
1.5A maximum output current (I_OUT) while one LS-FET is ON
700mA maximum I_OUT while four LS-FETs are ON
Over-Current Protection (OCP)

Under-Voltage Lockout (UVLO) protection
Over-Temperature Protection (OTP)
Fault indication output
No control power supply required
Simple logic interface with Schmitt triggers
3.3V and 5V compatible logic supply
Available in a QFN-24 (4mm x 4mm) package

Specifications

-55°C to 150°C storage temperature range
150°C junction temperature
260°C lead temperature
-40°C to 125°C operating junction temperature range

ESD ratings:
- ±2kV Human Body Model (HBM)
- ±2kV Charged Device Model (CDM)

Applications

Unipolar stepper motors
Solenoid drivers

Monolithic Power Systems (MPS) MP6605E Gate Driver ICs

Features

Specifications

Applications

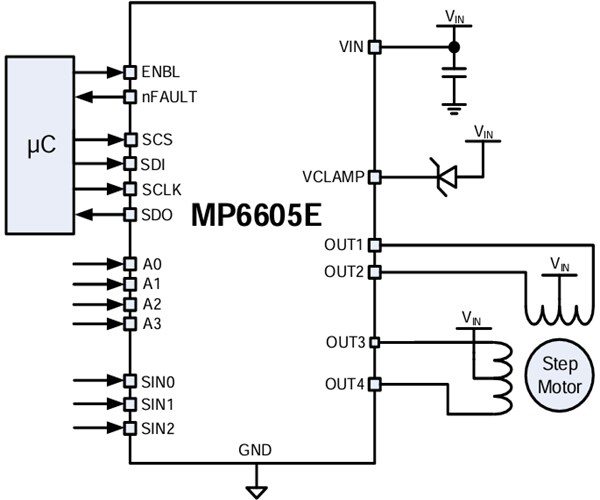

Typical Application Circuit Diagram

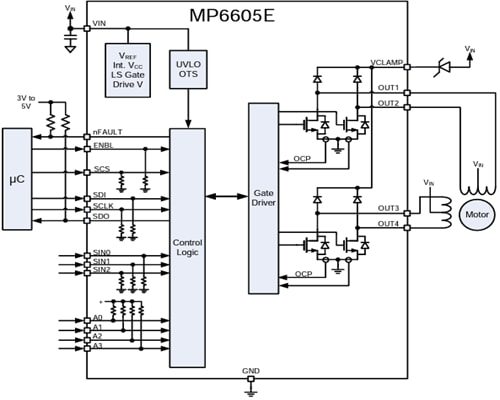

Functional Block Diagram
