Monolithic Power Systems (MPS) MP2183 3A Synchronous Step-Down Converter

Monolithic Power Systems (MPS) MP2183 3A Synchronous Step-Down Converter features built-in internal power MOSFETs. The converter achieves 3A continuous output current from a 2.5V to 5.5V input voltage. The device has excellent load and line regulation, and the output voltage can be regulated to as low as 0.6V. Constant on-time control provides fast transient response and eases loop stabilization. Fault protections include cycle-by-cycle current limiting and thermal shutdown.

Features

Low IQ: 21μA
1.2MHz Switching Frequency
EN for Power Sequencing
1% FB Accuracy
Wide 2.5V to 5.5V Operating Input Range
Output Adjustable from 0.6V
Up to 3A Output Current
65mΩ and 35mΩ Internal Power MOSFET Switches

100% Duty On
Output Discharge
VO OVP
External Soft-Start Control
Short-Circuit Protection with Hiccup Mode
Power Good
Available in a SOT583 Package

Applications

Wireless/Networking Cards
Portable Instruments
Battery-Powered Devices

Low-Voltage I/O System Power
Multi-Function Printers

Monolithic Power Systems (MPS) MP2183 3A Synchronous Step-Down Converter

Features

Applications

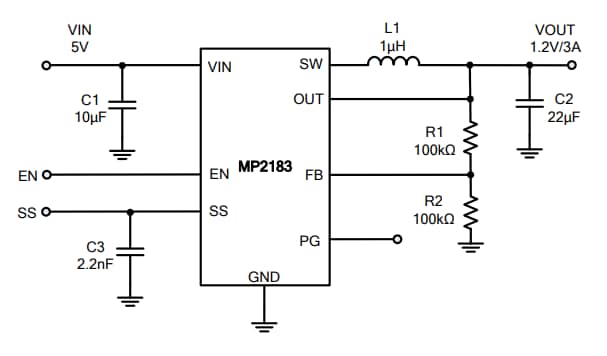

Typical Application
