Monolithic Power Systems (MPS) MP1922 H-Bridge Gate Drivers

Monolithic Power Systems (MPS) MP1922 H-Bridge Gate Drivers are designed for driving two N-channel power MOSFETs with up to 3A source and 4A sink current capability. These gate drivers are single-channel ICs that support up to 100V output supply voltages. The h-bridge gate drivers feature configurable slew rate control, FET desaturation protection, adjustable dead-time control, Under-Voltage Lockout (UVLO), and thermal shutdown. These MP1922 gate drivers are applicable in motor driver applications, automotive pumps, fans, superchargers and actuators, power drills, and e-bikes.

Features

Supports 100V supply operation
3A Source, 4A sink gate drive current
Internal charge pump and auto-refresh for High-Side (HS) gate drive
Integrated current-sense amplifier
Low-power sleep mode
Programmable controlled slew rate

Desaturation protection of external MOSFETs
Thermal shutdown
Under-Voltage Lockout (UVLO)
Fault indication output
Thermally enhanced surface-mount package
Available in a QFN-22 (4mmx5mm) package

Applications

Brushless DC (BLDC) motors and Permanent Magnet Synchronous Motor (PMSM) drives
High-current brushed DC motor drives
Automotive pumps, fans, superchargers, and actuators

Power drills
E-Bikes

Monolithic Power Systems (MPS) MP1922 H-Bridge Gate Drivers

Features

Applications

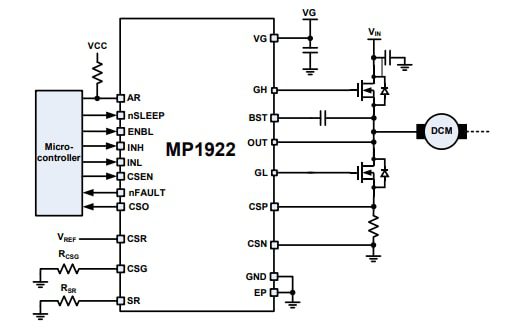

Typical Application Diagram

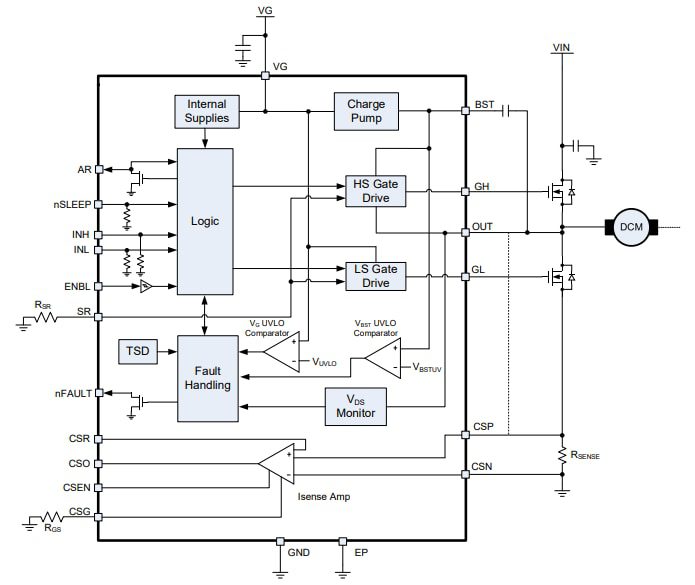

Functional Block Diagram

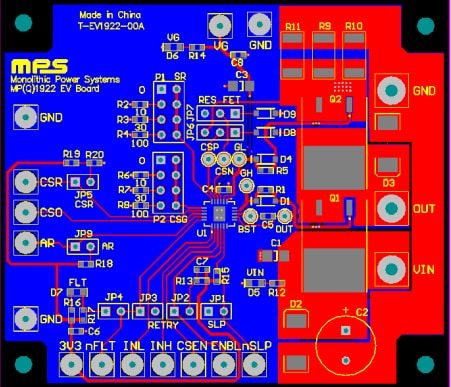

MP1922 PCB Layout
