Monolithic Power Systems (MPS) MIE1W0505BGLVH DC/DC Modules

Monolithic Power Systems (MPS) MIE1W0505BGLVH DC/DC Modules are isolated and regulated DC/DC modules supporting 3V to 5.5V input voltage (VIN) applications. The device features superior load and line regulation, allowing up to 1W of output power (POUT). The MIE1W0505BGLVH integrates a power MOSFET, feedback circuit, and transformer in a single chip, providing excellent performance and space-saving size.

The MPS MIE1W0505BGLVH facilitates a regulated output. The MIE1W0505BGLVH DC/DC modules start switching when the output voltage (VOUT) falls below the target voltage, supplying power from VIN to VOUT until VOUT matches the target output value again.

The MIE1W0505BGLVH integrates a VOUT feedback block, which regulates VOUT without a traditional optocoupler and TL431. The device delivers a small size and highly reliable operation compared to conventional isolation power modules.

The MIE1W0505BGLVH offers continuous short-circuit protection (SCP) and over-temperature protection (OTP) and is housed in a small LGA-12 (4mm x 5mm) package.

Features

  • 3V to 5.5V operating input voltage (VIN) range
  • Selectable 5V or 3.3V output voltage (VOUT)
    • 5V to 5V at ≥200mA available load current
    • 5V to 3.3V at ≥200mA available load current
    • 3.3V to 3.3V at ≥75mA available load current
  • 2.5kVRMS isolation voltage
  • Max 1W output power (POUT)
  • Supports infinite capacitive load
  • 0.4% load regulation
  • 0.5% line regulation
  • Continuous Short-Circuit Protection (SCP)
  • Over-Temperature Protection (OTP)
  • CB certification according to IEC62368-1 (ongoing)
  • Meets EN55032 class B emissions
  • -40°C to +125°C operating temperature range
  • Available in an LGA-12 (4mm x 5mm) package

Applications

  • Industrial automation systems
  • Isolated bias power for digital isolators
  • Isolated power for isolated RS-485/RS422/CAN interface
  • Isolated sensor power supply
  • Telecom and network device (5G RRU, industrial CPE, network gateway, etc.)

Videos

Typical Application

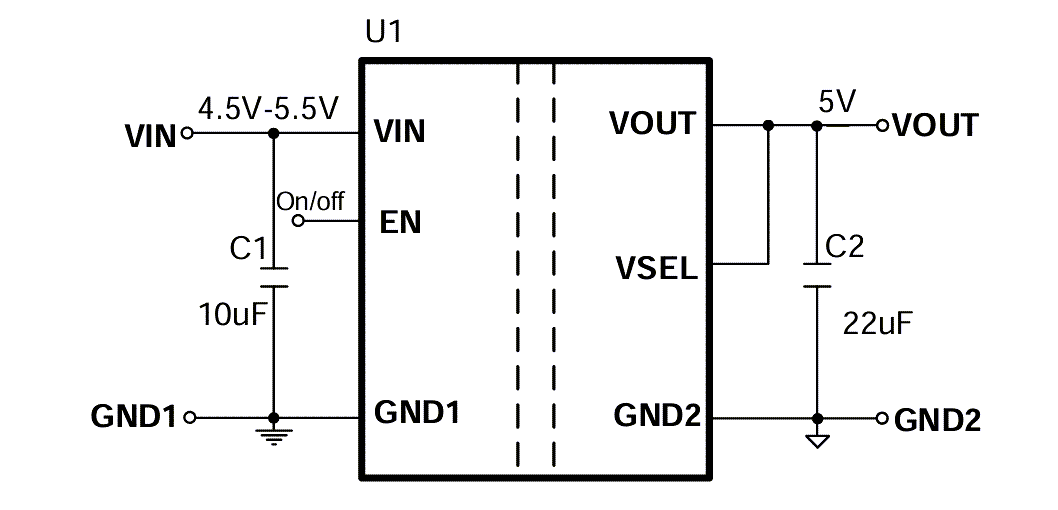

Application Circuit Diagram - Monolithic Power Systems (MPS) MIE1W0505BGLVH DC/DC Modules

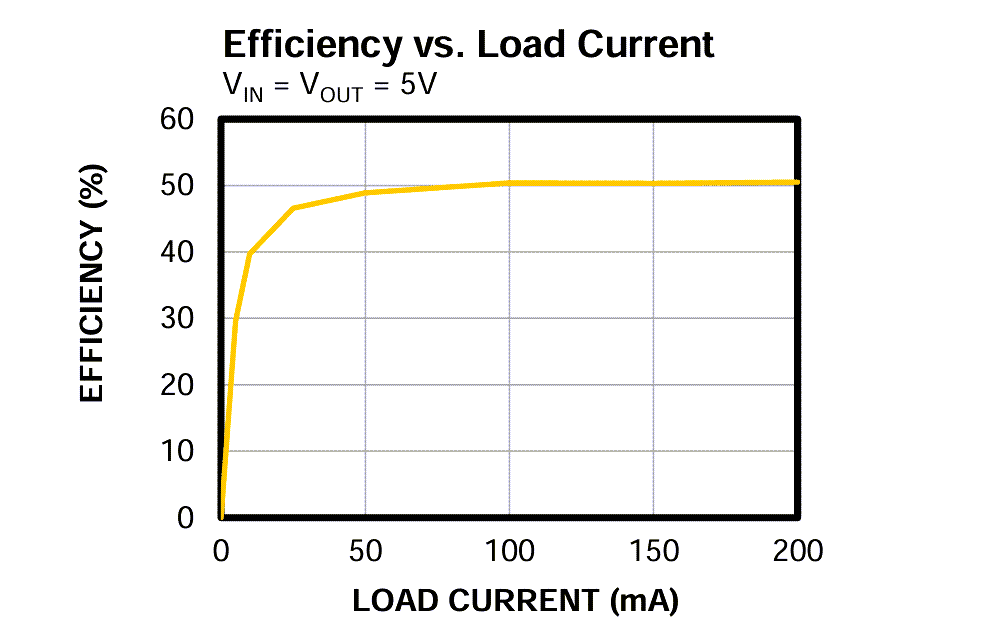

Performance Graph - Monolithic Power Systems (MPS) MIE1W0505BGLVH DC/DC Modules
