Monolithic Power Systems (MPS) EVQ4431-L-00A Evaluation Board

Monolithic Power Systems (MPS) EVQ4431-L-00A Evaluation Board is designed to evaluate the capabilities of the MP4431 and MPQ4431 switching voltage regulators. These regulators are frequency-configurable (350kHz to 2.5MHz), synchronous, and step-down switching regulators with integrated internal high-side and low-side power MOSFETs. The MP4431 and MPQ4431 regulators employ Advanced Asynchronous Mode (AAM) to achieve high efficiency under light-load conditions by scaling down the switching frequency.

The EVQ4431-L-00A evaluation board is a fully assembled and tested board that generates 3.3V of output voltage at load currents up to 1A. This evaluation board operates from 3.3V to 36V input voltage range with 450kHz switching frequency. The EVQ4431-L-00A evaluation board features low-dropout mode, configurable soft-start time, and power good indicator. This evaluation board is AEC-Q100 Grade 1 qualified for use in automotive and industrial power systems.

View MPQ4431 & MP4431 Switching Voltage Regulators

Features

Evaluate MP4431 and MPQ4431 regulators
3.3V to 36V wide operating input voltage range
1A of continuous output current
1μA low shutdown mode current
10μA sleep mode quiescent current
Internal 90mΩ high-side and 80mΩ low side MOSFETs
350kHz to 2.5MHz configurable switching frequency
Synchronize to external clock, selectable in-phase or 180° out-of-phase
Power good indicator
Configurable soft-start time

80ns minimum on-time
Selectable FCCM and AAM
Low-dropout mode
Over-current protection with valley current detection and hiccup mode
Thermal shutdown
Available in a QFN-16 (3mm x 4mm) package
Available with wettable flanks
AEC-Q100 grade 1

Applications

Automotive systems

Industrial power systems

Monolithic Power Systems (MPS) EVQ4431-L-00A Evaluation Board

Features

Applications

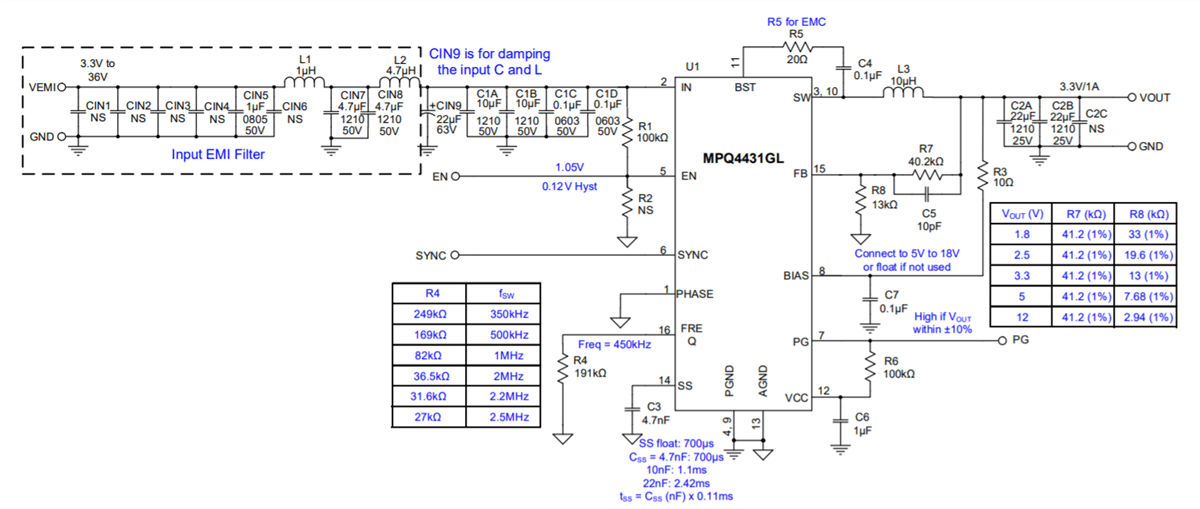

Schematic Graph

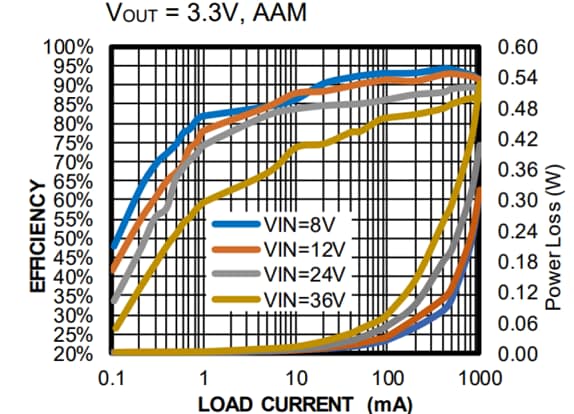

Performance Graph (Efficiency vs. Load Current vs. Power Loss)
