Monolithic Power Systems (MPS) EVQ3367A Evaluation Board

Monolithic Power Systems (MPS) EVQ3367A Evaluation Board is designed to demonstrate the capabilities of the MPQ3367A. The MPQ3367A is a step-up converter with a six-channel current source designed to drive white LED array drivers as backlighting for small and medium-sized LCD panels. This device features 6 channels with a maximum of 150mA per channel, internal 100mΩ, 50V MOSFET, and up to 2.2MHz configurable f_SW. The EVQ3367A evaluation board is available in 63.5mm x 52.5mm (LXW) dimensions.

Features

3.5V to 36V input voltage range
6 channels with a maximum of 150mA per channel
Internal 100mΩ, 50V MOSFET
Up to 2.2MHz configurable f_SW
External sync SW function
Multi-dimming operation mode through PWM input:
- Direct PWM dimming
- Analog dimming
- Mix dimming with 25% or 12.5% transfer point
5000:1 dimming ratio in PWM dimming mode when f_PWM ≤ 200Hz
200:1 dimming ratio at analog dimming through PWM dimming signal input
Excellent EMI performance
Frequency spread spectrum

I²C Interface with 3 selectable IC addresses
Phase shift function for PWM dimming
2.5% current matching
Cycle-by-cycle current limit
Disconnect V_OUT from V_IN
LED current auto-decrement at high temperatures
LED short/open protection, Over-Current Protection (OCP), Over-Temperature Protection (OTP), and inductor short Protection
Programmable LED short and Over-Voltage Protection (OVP) Thresholds
Fault indicator signal output
Available in AEC-Q100 Grade 1
63.5mm x 52.5mm (LXW) dimensions

Applications

Tablets
Notebooks

Automotive displays

Monolithic Power Systems (MPS) EVQ3367A Evaluation Board

Features

Applications

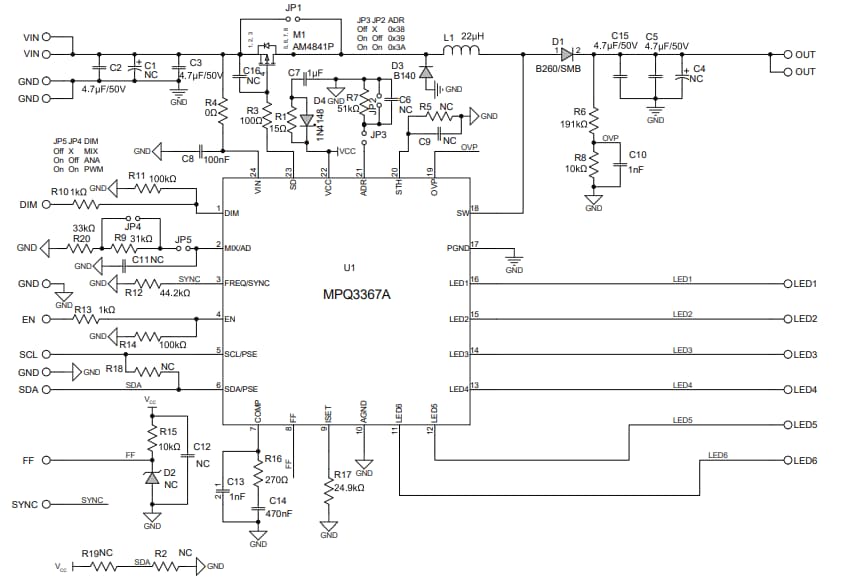

Schematic Diagram
