Monolithic Power Systems (MPS) EVQ1923-RE-00A Evaluation Board

Monolithic Power Systems (MPS) EVQ1923-RE-00A Evaluation Board is designed to evaluate and demonstrate the MPQ1923, a high-frequency half-bridge gate driver. This board features a 5V to 17V driver power supply voltage range and Undervoltage-Lockout (UVLO) protection for the High-Side (HS-FET) and Low-Side (LS)-FET gate drivers. The MPQ1923 is available in a small QFN-10 (4mm x 4mm) or QFN-8 (4mm x 4mm) package. Typical applications include telecommunication half-bridge power supplies, avionics DC/DC converters, two-switch forward converters, and active-clamp forward converters.

Features

Drives an N-channel MOSFET half-bridge
Low dropout with 4.5V Under-Voltage Lockout (UVLO) falling threshold
120V Bootstrap voltage (V_BST) range
On-chip bootstrap diode
20ns typical propagation delay
8A sink current (I_SINK)
7A source current (I_SOURCE) at 12V V_DD

<5ns gate driver matching time delay
Drives a 1nF load with 7.2ns Rise Time (t_RISE) and 5.5ns Fall Time (t_FALL) at 12V V_DD
TTL-compatible input
<300μA Quiescent current (I_Q)
UVLO protection for the High-Side Field Effect Transistor (HS-FET) and Low-Side Field Effect Transistor (LS-FET) gate drivers
Available in QFN-10 (4mm x 4mm) and QFN-8 (4mm x 4mm) packages
Available in AEC-Q100 grade 1

Applications

Telecommunication half-bridge power supplies
Avionics DC/DC converters

Two-switch forward converters
Active-clamp forward converters

Monolithic Power Systems (MPS) EVQ1923-RE-00A Evaluation Board

Features

Applications

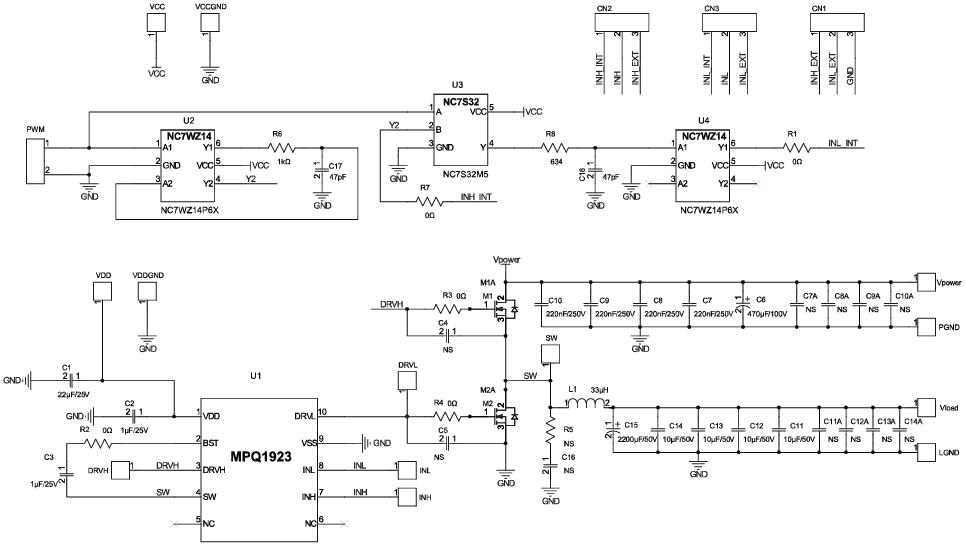

Schematic Diagram
