Monolithic Power Systems (MPS) EVQ1922 Evaluation Board

Monolithic Power Systems (MPS) EVQ1922 Evaluation Board drives two N-channel power MOSFETs in a half-bridge configuration and operates on power supplies up to 100V. This Evaluation Board is designed to demonstrate the performance of MPQ1922, a half-bridge gate driver. The MPQ1922 generates an adaptive Dead Time (DT) by monitoring the gate driver output voltages to prevent shoot-through in the output MOSFETs. Typical applications include automotive pumps, fans, superchargers and actuators, power drills, e-bikes, and motor driver applications.

Features

Supports 100V supply operation
3A source, 4A sink gate driver current
Internal charge pump and auto-refresh for High-Side (HS) gate driver
Integrated current-sense amplifier
Low-power sleep mode
Configurable, controlled slew rate
Desaturation protection for external MOSFETs

Thermal shutdown
Under-Voltage Lockout (UVLO) protection
Fault indication output
Thermally enhanced surface-mount package
Available in a QFN-22 (4mm x 5mm) package
Available in a wettable flank package
Available in AEC-Q100 grade 1

Applications

Brushless DC (BLDC) motor and Permanent Magnet Synchronous Motor (PMSM) drives
High-current brushed DC motor drives
Automotive pumps, fans, superchargers, and actuators

Power drills
E-bikes

Monolithic Power Systems (MPS) EVQ1922 Evaluation Board

Features

Applications

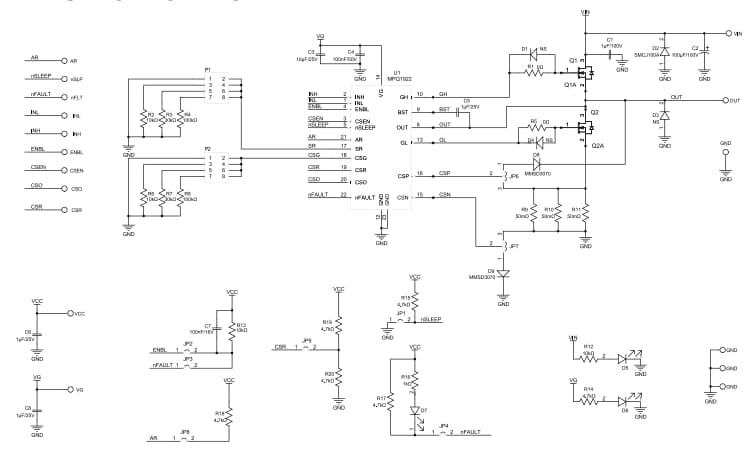

Evaluation Board Schematic
