Monolithic Power Systems (MPS) EVL3435-L-00A Evaluation Board

Monolithic Power Systems (MPS) EVL3435-L-00A Evaluation Board is designed to demonstrate the capabilities of the MP3435. The MP3435 is a 600kHz, fixed-frequency, high efficiency, fully integrated synchronous boost converter with 22V output voltage across a wide input supply range (3V to 20V). The MP3435 is housed in a low-profile QFN20 (3mm x 4mm) package.

Features

Wide 3V to 20V operating input range
Up to 22V output voltage
Integrated 10mΩ LS-FET and 15mΩ Synchronous HS-FET
19A Internal switch current limit or external configurable input current limit
Input disconnect and output Short-Circuit Protection (SCP)

External Soft Start (SS) and compensation
Configurable UVLO and hysteresis
<1µA Shutdown current
Thermal Shutdown (TSD) at 150°C
Available in a QFN-20 (3mm x 4mm) package

Applications

Thunderbolt interfaces
Notebooks and tablets
BLUETOOTH® audio
Power banks

Fuel Cells
Point-of-Sale (POS) systems
Other electronic accessories

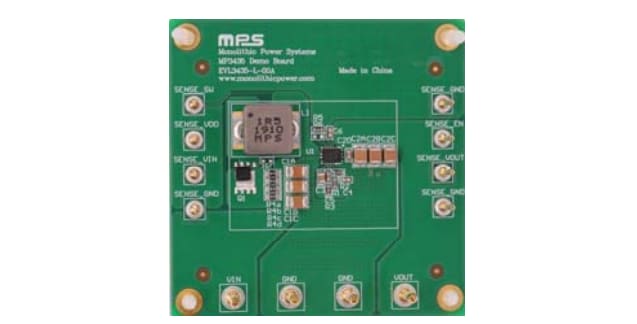

PCB Layout

Monolithic Power Systems (MPS) EVL3435-L-00A Evaluation Board

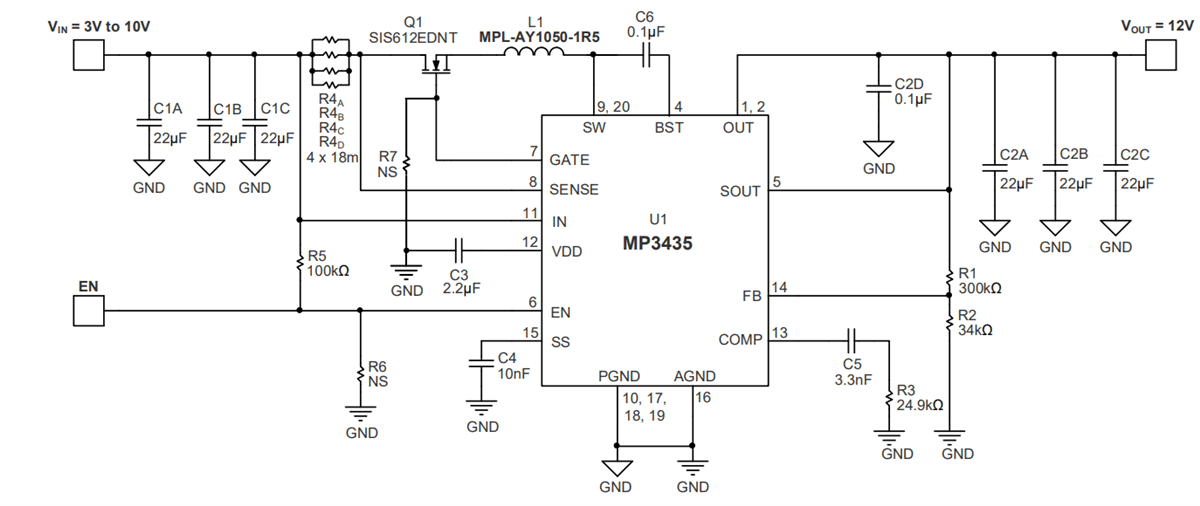

Schematic

Schematic - Monolithic Power Systems (MPS) EVL3435-L-00A Evaluation Board
