Monolithic Power Systems (MPS) EVL2460-J-00A Converter Evaluation Board

Monolithic Power Systems (MPS) EVL2460-J-00A Converter Evaluation Board is designed to demonstrate the capabilities of the MP2460. The MPS2460 is a high-frequency, step-down switching regulator with an integrated low-side MOSFET (LS-FET) and high-side MOSFET (HS-FET). The Monolithic Power Systems (MPS) MP2460 can provide up to 0.6A of output current (I_OUT) with current mode control for fast loop response.

Features

Meets 0.1% output voltage ripple
Low-dropout mode
Wide 4.5V to 45V operating input range
50V absolute maximum rating
2% to 98% large range duty cycle
Light-load mode
> 90% efficiency
Dedicated internal compensation

Stable with ceramic/electrolytic output capacitors
420mΩ/220mΩ internal power MOSFETs
1.7MHz fixed switching frequency
Internal Soft Start (SS)
Precision current limit without current sensing resistor
Short-circuit protection with hiccup mode
Output adjustable from 0.8V to 98% of VIN
Over-temperature protection

Applications

High-voltage power conversions
Industrial power systems

Battery-powered systems
Power meters

Monolithic Power Systems (MPS) EVL2460-J-00A Converter Evaluation Board

Features

Applications

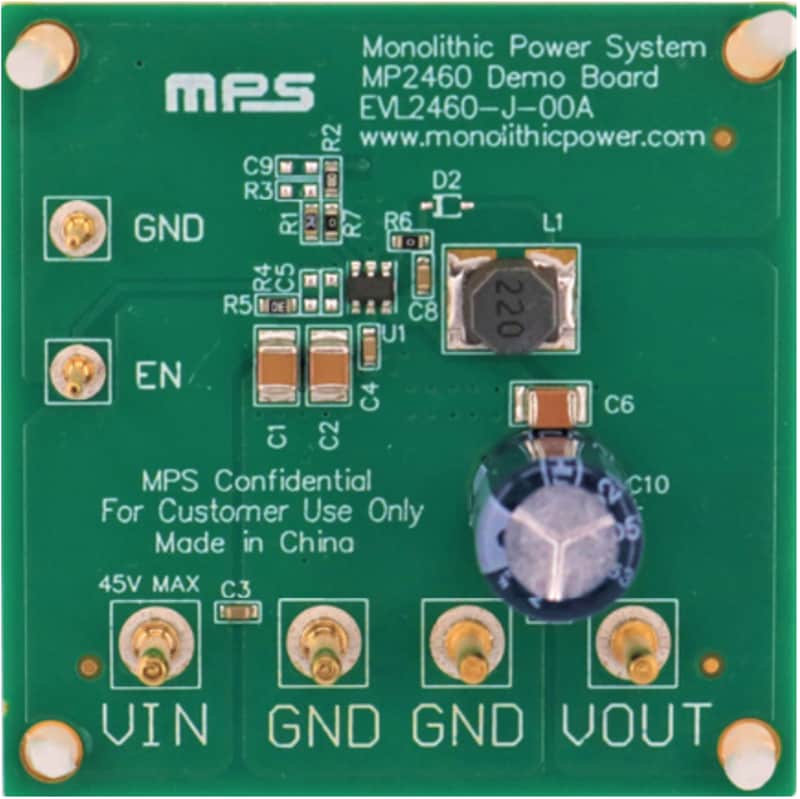

Board Layout
