Monolithic Power Systems (MPS) EVKT-MP2651 Evaluation Kit

Monolithic Power Systems (MPS) MP2651 Evaluation Kit is used to evaluate the MP2651 buck-boost charger IC. The Monolithic Power Systems (MPS) MP2651 is designed for battery packs with 1 to 4 cells in series. The EVKT-MP2651 showcases the capabilities of this device. The device features a broad input voltage range of 4V to 22V and the ability to supply a wide 3V to 21V voltage range at the IN pin in source mode. The MP2651 is compliant with the USB PD specification.

Features

Fully integrated buck-boost charger with low on-resistance (R_DS(ON)) power MOSFETs for battery
Packs with one cell to 4 cells in series
Wide operation ranges
- 4V to 22V operation input voltage (V_IN)
- 3V to 21V reverse output voltage (V_OUT) with 20mV/step
- Up to 6A input current (I_IN) limit with 50mA/step
- Up to 6A charge current with 50mA/step
- Up to 6A output current (I_OUT) with 50mA/step
- 3.4V/cell to 4.67V/cell battery-full voltage with 0.5% accuracy
- 4V to 20.4V input minimum voltage limit with 80mV/step
- 500kHz to 1.2MHz switching frequency (f_SW)
I²C or SMBus host control interface to support flexible parameter setting and status reporting
Integrated, 10-bit analog-to-digital converter (ADC) for voltage, current, and temperature monitor

Analog output pin to monitor charge current
Robust, built-in protections
- Input Over-Voltage Protection (OVP)
- Battery OVP
- Output Short-Circuit-Protection (SCP) in source mode
- Battery missing detection
- NTC pin floating detection
- Integrated N-Channel MOSFET driver for input power pass-through or OVP
- Configurable JEITA for battery temperature protection
- Thermal regulation and thermal shutdown
- Safety charge timer
Available in a TQFN-30 (4mm x 5mm) package

Monolithic Power Systems (MPS) EVKT-MP2651 Evaluation Kit

Features

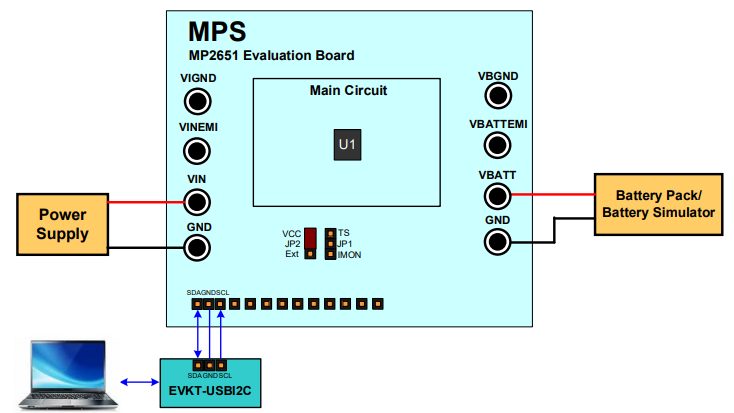

Block Diagram
