Monolithic Power Systems (MPS) EVCS1806-S-X-Y-00A Evaluation Boards

Monolithic Power Systems (MPS) EVCS1806-S-X-Y-00A Evaluation Boards evaluate the MCS1806GS-X-Y series high-accuracy, linear hall-effect current sensors for AC/DC current sensing. The MPS EVCS1806-S-X-Y-00A features a differential hall array to eliminate stray magnetic fields. With two power supply options (3.3V or 5V) and six current ranges (5A to 50A), the device optimizes accuracy for various applications.

Features

3.3V or 5V supply voltage (V_CC)
Maximum primary applied current (IP_MAX) six options, ±5A to ±50A

Output voltage (V_OUT) 0.5 x V_CC + Sens(TYP) x IP (1)
Total accuracy IP from 10% x IP_MAX to IP_MAX <2.5%

Monolithic Power Systems (MPS) EVCS1806-S-X-Y-00A Evaluation Boards

Features

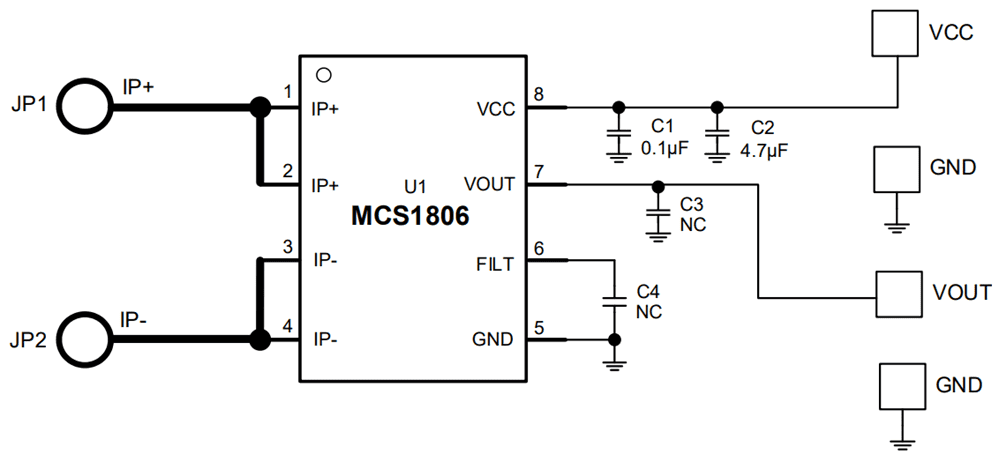

SCHEMATIC
