Monolithic Power Systems (MPS) EVBL9841-L-00A Evaluation Board

Monolithic Power Systems (MPS) EVBL9841-L-00A Evaluation Board features an integrated MPS power inductor and demonstrates the capabilities of the MP9841 and MPQ9841 Converters. The MP9841 Synchronous Step-Down Converters offer a switch-mode and built-in power MOSFETs. The compact solution achieves 1A of continuous output current with excellent load and line regulation over a wide 3.3V to 36V input supply range. Advanced asynchronous modulation (AAM) mode achieves high efficiency under light-load conditions by scaling down the switching frequency (f_SW) to reduce the switching and gate driver losses.

The MPS EVBL9841-L-00A Evaluation Board is fully assembled and tested, generating 3.3V of output voltage (V_OUT) and up to 1A of load current across the entire V_IN range.

Features

Wide 3.3V to 36V Operating Input Voltage (V_IN) range
Up to 1A Continuous Output Current (I_OUT)
2μA Low Shutdown Current (I_SD)
14μA Sleep Mode Quiescent Current (I_Q)
125mΩ and 115mΩ Internal power MOSFETs
Synchronous mode for high efficiency
350kHz to 2.5MHz Configurable Switching Frequency (f_SW)
Selectable in-phase or 180° out-of-phase

External SYNC clock
Power Good (PG) indication
Configurable Soft-Start Time (t_SS)
80ns Minimum on time
Selectable Forced Continuous Conduction Mode (FCCM) and Advanced Asynchronous Modulation (AAM) mode
Low-Dropout (LDO) mode
Over-Current Protection (OCP) with valley current detection and hiccup mode
Thermal shutdown
Available in wettable flank package
Fully assembled and tested

Applications

Automotive systems
Industrial power systems

Monolithic Power Systems (MPS) EVBL9841-L-00A Evaluation Board

Features

Applications

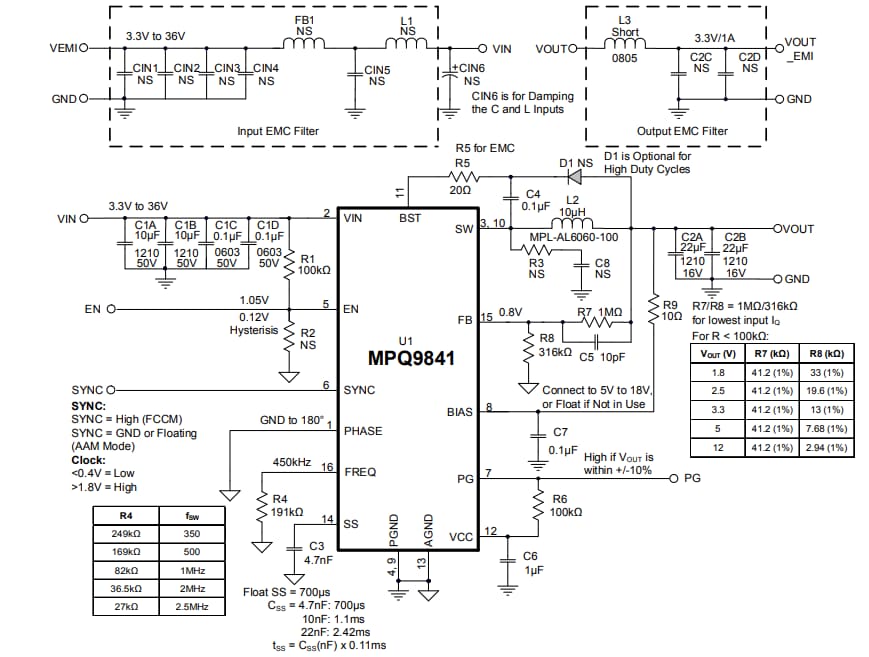

Schematic

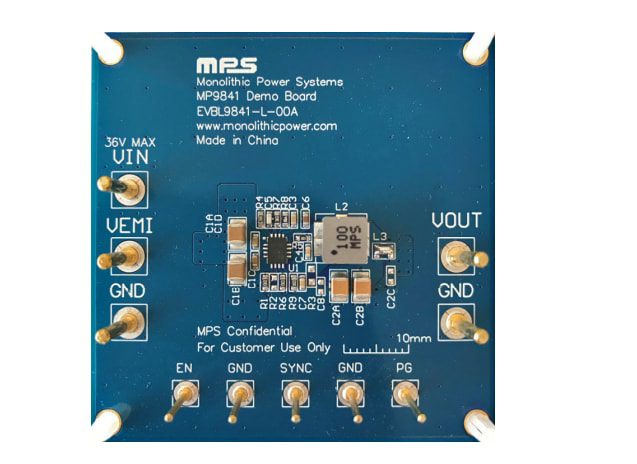

Overview
