Monolithic Power Systems (MPS) EVBL9840-L-00A Evaluation Board

Monolithic Power Systems (MPS) EVBL9840-L-00A Evaluation Board is designed to demonstrate the capabilities of the MP9840 and the MPQ9840. The MP9840 Synchronous Step-Down Converters are high-frequency, rectified, switch-mode converters providing built-in power MOSFETs. The MP9840 delivers 3.5A of continuous output current with excellent load and line regulation over a wide 3.3V to 36V input supply range.

The MPS EVBL9840-L-00A Evaluation Board supplies an integrated MPS power inductor. The fully assembled and tested evaluation board develops 3.3V of output voltage (V_OUT) and up to 3.5A of load current across the entire V_IN range.

Features

Wide 3.3V to 36V Operating Input Voltage (V_IN) range
Up to 3.5A continuous output current (I_OUT)
2μA Low shutdown current (I_SD)
14μA Sleep mode quiescent current (I_Q)
125mΩ and 55mΩ Internal power MOSFETs
Synchronous mode for high efficiency
350kHz to 2.5MHz Configurable switching frequency (f_SW)
Selectable in-phase or 180° out-of-phase
External SYNC clock
Power Good (PG) indication

Configurable Soft-Start Time (t_SS)
80ns Minimum on time
Selectable Forced Continuous Conduction Mode (FCCM) and Advanced Asynchronous Modulation (AAM) mode
Low-Dropout (LDO) mode
Over-Current Protection (OCP) with valley current detection and hiccup mode
Thermal shutdown
Available in a wettable flank package
Fully assembled and tested

Applications

Automotive systems
Industrial power systems

Specifications

3.3V to 36V Input voltage
3.3V Output Voltage
3.5A Output current

Monolithic Power Systems (MPS) EVBL9840-L-00A Evaluation Board

Features

Applications

Specifications

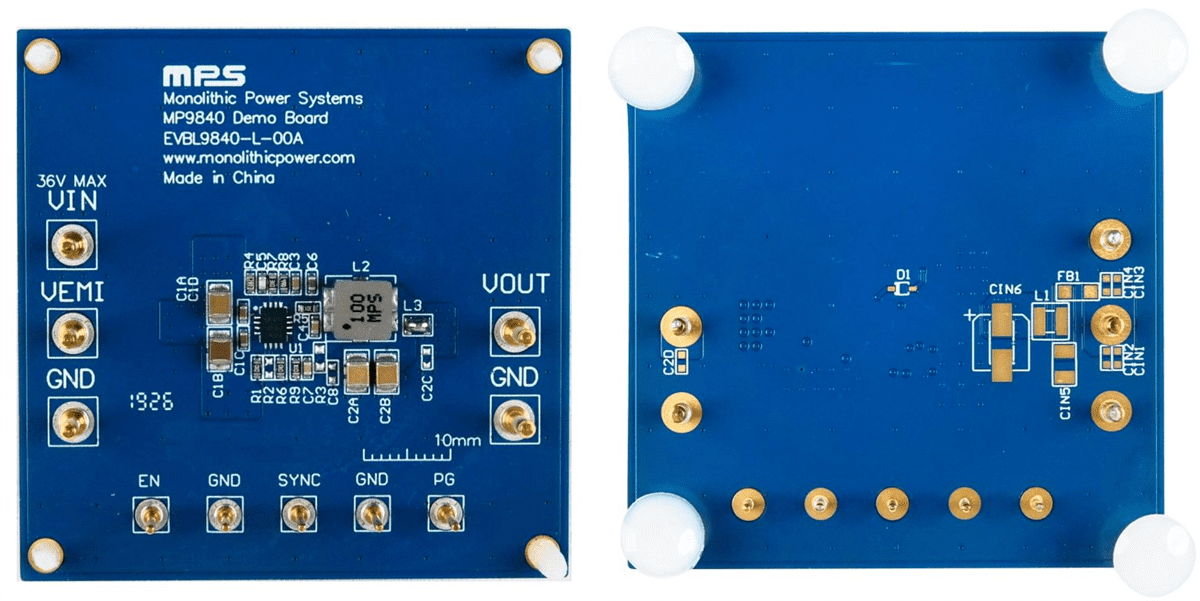

PCB Layout

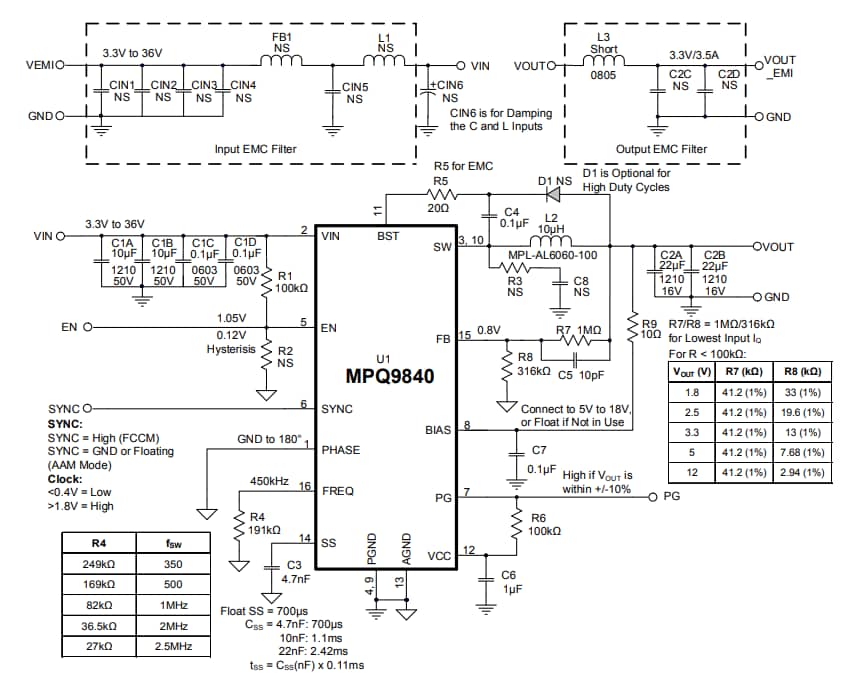

Schematic
