Monolithic Power Systems (MPS) EVBL4420H-J-00A Evaluation Board

Monolithic Power Systems (MPS) EVBL4420H-J-00A Evaluation Board is designed to evaluate the MP4420H and MPQ4420H switching voltage regulators. These regulators are high-frequency, synchronous, rectified, stepdown, and switch-mode converters with built-in power MOSFETs. The MP4420H/MPQ4420H regulators have synchronous mode operation for higher efficiency over the output current load range. The current-mode operation provides a fast transient response and eases loop stabilization. This evaluation board comes with full protection features that include over-current protection and thermal shut down.

The EVBL4420H-J-00A evaluation board is a fully assembled and tested board that operates from 4V to 36V input voltage (V_IN) range. The evaluation board features a high duty cycle for automotive cold-crank, power saver mode, internal soft-start, and power good indicators. This EVBL4420H-J-00A evaluation board is AEC-Q100 Grade 1 qualified for use in automotive, industrial control, and distributed power systems.

View MPQ4420H & MP4420H Switching Voltage Regulators

Features

Evaluate MP4420H and MPQ4420H regulators
4V to 36V wide continuous operating input range
90mΩ/55mΩ low R_DS(ON) internal power MOSFETs
High-efficiency synchronous mode operation
410kHz default switching frequency
Synchronizes to a 200kHz to 2.2MHz external clock
High duty cycle for automotive cold-crank
Power-save mode

Internal Soft-Start (SS)
Power Good (PG) indicators
Over-Current Protection (OCP) with hiccup mode
Thermal shutdown
Available in AEC-Q100 grade 1
Fully assembled and tested
MPS power inductor stuffed

Applications

Automotive systems
Industrial control systems

Distributed power systems

Monolithic Power Systems (MPS) EVBL4420H-J-00A Evaluation Board

Features

Applications

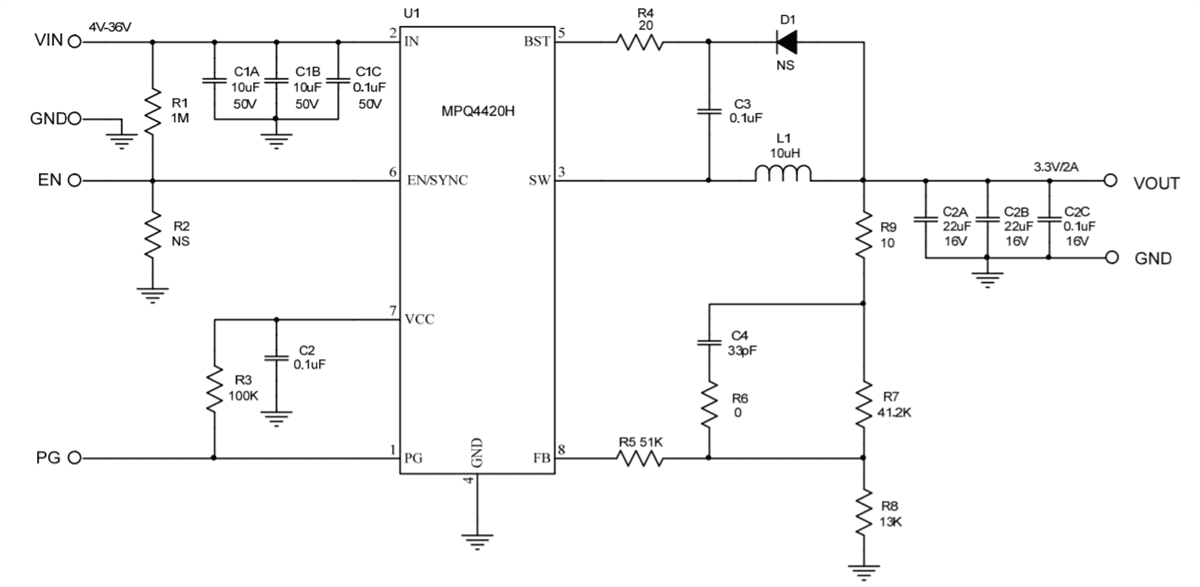

Schematic Diagram

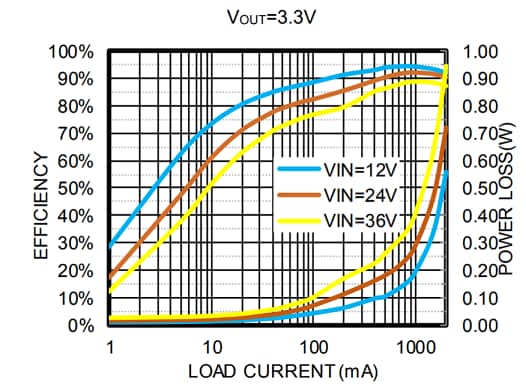

Performance Graph (Efficiency vs. Load Current vs. Power Loss)
