Monolithic Power Systems (MPS) EV8770C-Q-00A Evaluation Board

Monolithic Power Systems (MPS) EV8770C-Q-00A Evaluation Board is designed to demonstrate a fully-integrated high-frequency, synchronous rectified MP8770C step-down switch-mode converter with internal power MOSFETs. This device offers a very compact solution to achieve an 8A continuous output current over a wide input range, with excellent load and line regulation. The MP8770C converter offers Constant On-Time (COT) control operation that provides very fast transient response and easy loop design as well as very tight output regulation. Typical applications include portable devices, xDSL devices, digital set-top boxes, flat panel television and monitors, general purposes, and industrial systems.

Features

3V to 17V wide operating input range
8A output current
22mΩ/10mΩ Low R_DS(ON) internal power MOSFETs
100μA Quiescent current
Output adjustable from 0.6V
High-efficiency synchronous mode operation
Pre-biased start-up
Forced PWM operation
Fixed 700kHz switching frequency

External programmable soft-start time
EN and power good for power sequencing
Built-in protections:
- Short-Circuit Protection (SCP)
- Over-Current Protection (OCP) and hiccup mode
- Under-Voltage Protection (UVP)
- Thermal shutdown
Available in a QFN-16 (3mm x 3mm) package

Monolithic Power Systems (MPS) EV8770C-Q-00A Evaluation Board

Features

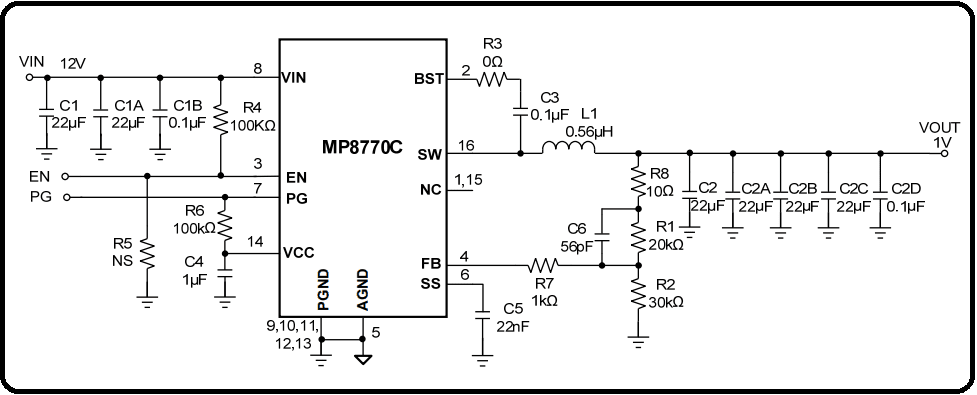

Evaluation Board Schematic
