Monolithic Power Systems (MPS) EV2770-L-00A Evaluation board

Monolithic Power Systems (MPS) EV2770-L-00A Evaluation board is designed to demonstrate the capabilities of the MP2770, a switchmode battery charge and system power path management device. This MP2770 meets most of the system’s power demand and input power using the V_IN regulation function and input current limit (I_{IN_LIM}). The evaluation board features 5V to 15V input sources, wall adapters, and standard USB host ports with fast charging capabilities. This evaluation board operates at 600kHz switching frequency, 4V to 16V input voltage range, and 6A maximum battery current. The MP2770 battery management is designed for Li-ion, Li-polymer, and single-cell batteries across various portable applications.

Features

Comprehensive safety features:
- Charging safety timer
- Watchdog timer
- Thermal regulation and shutdown
- Customizable JEITA for battery temperature monitoring
- Cycle-by-Cycle Over-Current Protection (OCP)
- SYS OCP and Short-Circuit Protection (SCP)

Wall adapters with fast charging capabilities
Boost output operation
Standard USB host ports
Battery discharge current limiting
Available in a QFN-18 (3mmx4mm) package
Digital interface for real-time charge parameter configuration and status reporting

Specifications

600kHz switching frequency
4.2V battery voltage
4V to 16V input voltage
6A maximum battery current

93.7% typical charge efficiency
96.6% peak charge efficiency
92.8% typical boost efficiency
96.2% peak boost efficiency

Monolithic Power Systems (MPS) EV2770-L-00A Evaluation board

Features

Specifications

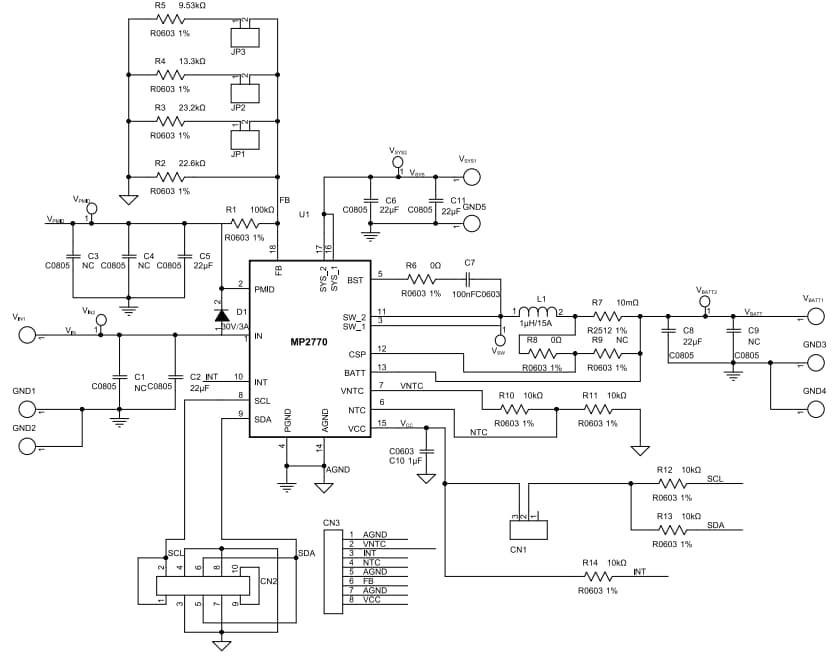

Schematic Diagram
