Monolithic Power Systems (MPS) EV2723A-QC-00A Evaluation Board

Monolithic Power Systems (MPS) EV2723A-QC-00A Evaluation Board is used for the MP2723 3A switch-mode battery charger IC. This device supports NVDC architecture with power path management. It’s suitable for portable applications including tablets, mobile internet devices, and smartphones. Its low-impedance power path optimizes efficiency, reduces battery charging time, and extends battery life. The I²C serial interface can control the charging and system settings.

Features

3.7V to 5V operating input voltage range
Up to 22V sustainable voltage
High-efficiency 3A, 1.35MHz buck charger
- D+/D- detection for BC1.2
- Adjustable minimum input voltage regulation for maximum power point tracking
USB OTG with adjustable 4.8V to 5.5V output, up to 1.5A output with selectable 1.35MHz boost converter
Up to 9A battery discharge current
Integrated ADC for monitoring input voltage, input current, battery voltage, charge current, system voltage, and battery temperature
NVDC power path management
- Instant-on works with no battery or deeply discharged battery
- Ideal diode operation in battery supplement mode

I²C port for flexible system parameter setting and status reporting
Full DISC control to support shipping mode and system restart
High accuracy
- ±0.5% charge voltage regulation
- ±5% charge current regulation
- ±5% input current regulation
- ±2% output regulation in boost mode
Safety features include configurable JEITA for battery temperature protection, battery charging safety timer, thermal regulation and thermal shutdown, input/system over-voltage protection, battery temperature protection
Charging operation indicator

Applications

Tablet PCs
Smartphones
Mobile internet devices

Monolithic Power Systems (MPS) EV2723A-QC-00A Evaluation Board

Features

Applications

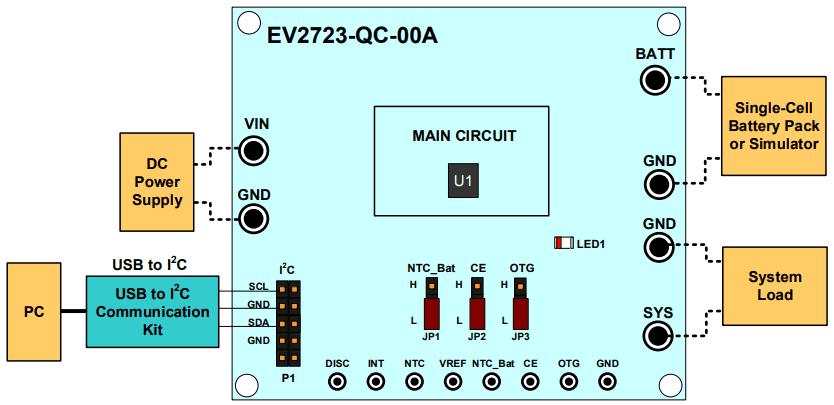

Block Diagram
