Monolithic Power Systems (MPS) EV2696A-Q-00B Evaluation Board

Monolithic Power Systems (MPS) EV2696A-Q-00B Evaluation Board provides an example application circuit to demonstrate the characteristics of the MP2696A. The MP2696A is an I²C-controlled, single-cell switching charger IC with power-path management and 3.6A boost output. The MP2696A has three operation modes; charge mode, boost mode, and sleep mode. In charge mode, EV2696A-Q-00B achieves up to 3.6A charge current with a 5V input source. In boost mode, EV2696A-Q-00B achieves up to 6.5A peak inductor current to deliver a 5V SYS output. All the parameters and control can be easily accessed via the I²C interface.

Using the EVKT-USBI2C-02 USB to I²C/PMBus Dongle, users can connect the EV2696A-Q-00B Evaluation Board to a PC. The Virtual Bench Pro and I²C GUI (Graphic User Interface) tools can then be used to control the output voltage, PG delay enable, output current limit, and more.

Features

Demonstrates a single-cell charging solution based on the MP2696A
4V to 6V input voltage (V_IN)
0.1A to 3.0A programmable input current (I_IN)
3.6V to 4.45V programmable charge voltage (V_{BATR_REG})
Up to 3.6A programmable charge current (I_CC)
5.05V to 5.25V programmable output voltage (V_SYS)
2.1A to 3.6A programmable output current limit (I_OLIM)
Up to 18W output power (P_OUT)
PCB dimensions: 6.35cm x 6.35cm x 1.2cm

Monolithic Power Systems (MPS) EV2696A-Q-00B Evaluation Board

Features

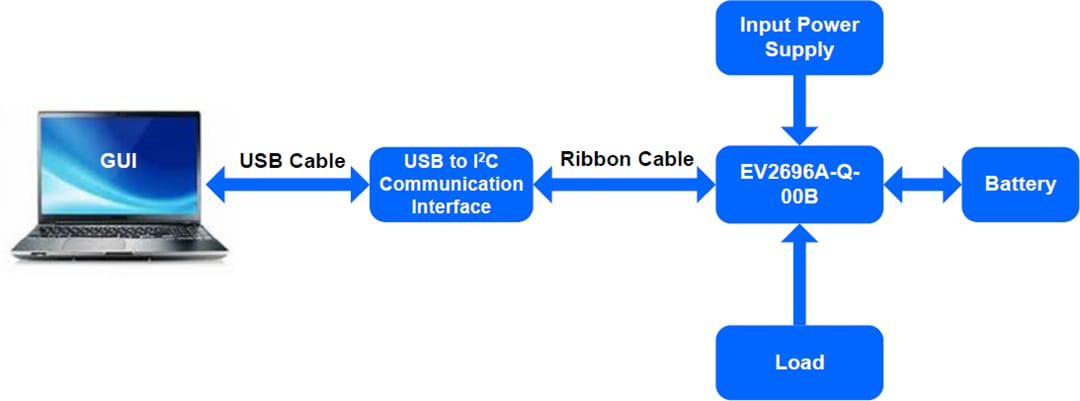

Setup Example
