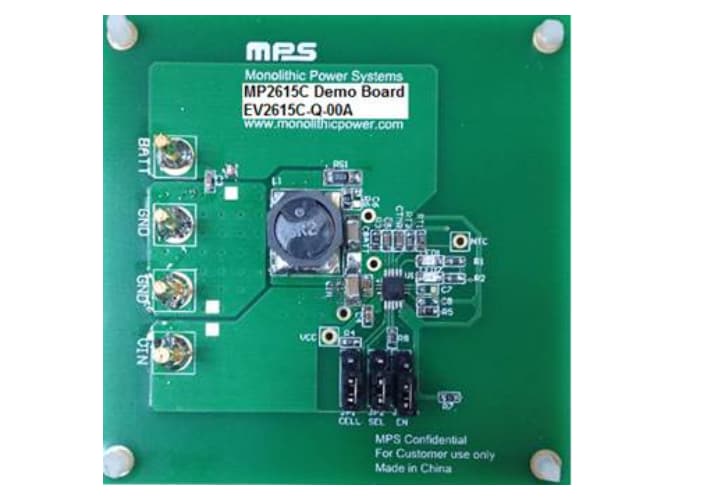

Monolithic Power Systems (MPS) EV2615C-Q-00A Evaluation Board

Monolithic Power Systems (MPS) EV2615C-Q-00A Evaluation Board is configured to evaluate the operation of the MP2615C. The MP2615C switching charger for 1- or 2-cell Li-ion or Li-polymer batteries includes built-in power MOSFETs. The MP2615C achieves up to 2A of charge current, which can be configured by an accurate sense resistor across the whole input range.

Features

4.75V to 18V Operating input voltage
Up to 99% duty cycle operation
Up to 2A configurable charging current
±0.75% Full battery voltage accuracy
4.1V/Cell and 4.2V/Cell selection for full battery voltage
Fully integrated power switches
Internal loop compensation
No external reverse blocking diode is required

Preconditioning for a fully depleted battery
Charging operation indicator
Configurable safety timer
Thermal shutdown protection
Cycle-by-Cycle Over-Current Protection (OCP)
Battery temperature monitoring and protection
Available in a QFN-16 (3mm x 3mm) package

Applications

Smartphones
Portable handheld solutions
Portable media players

Monolithic Power Systems (MPS) EV2615C-Q-00A Evaluation Board

Features

Applications

Overview

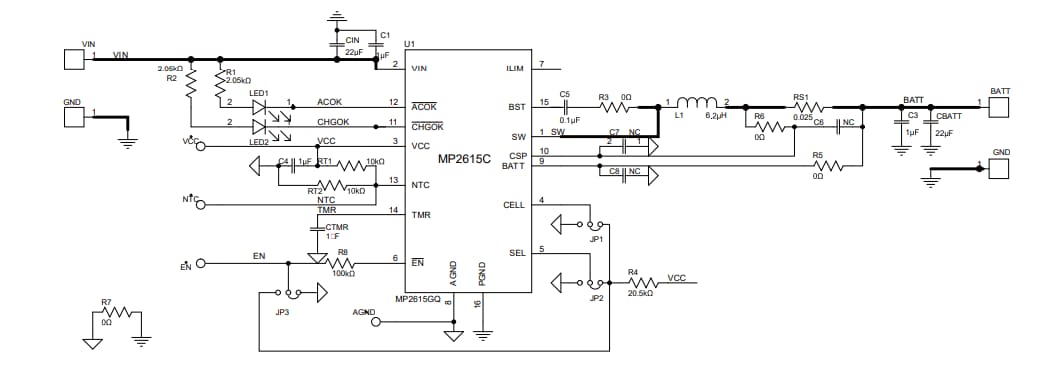

Schematic
