Monolithic Power Systems (MPS) EV2338-TL-00A Evaluation Board

Monolithic Power Systems (MPS) EV2338-TL-00A Evaluation Board demonstrates the capabilities of the MP2338 step-down switch-mode converter with internal power MOSFETs. The MPS EV2338-TL-00A offers a compact solution to achieve 3A continuous output current (I_OUT) across a wide input voltage (V_IN) range, with excellent load and line regulation. The MP2338 has a synchronous mode for high efficiency across the wide I_OUT load range.

Features

Wide 4.5V to 28V operating input voltage (V_IN) range
115mΩ/55mΩ low on-resistance R_DS(ON) internal power MOSFETs
160μA quiescent current (I_Q)
>92% efficiency for 24V to 5V/3A conditions
Power save mode at light loads
Fast load transient response
430kHz switching frequency (f_SW)

On-time (t_ON) extension to improve dropout
Configurable soft-start time
Power good (P_G) indication
Over-Current Protection (OCP) and Over-Voltage Protection (OVP) with hiccup mode
Thermal shutdown protection
Available in a SOT583 package

Applications

Game consoles
Digital set-top boxes

Flat-panel televisions and monitors
General-purposes power supplies

Monolithic Power Systems (MPS) EV2338-TL-00A Evaluation Board

Features

Applications

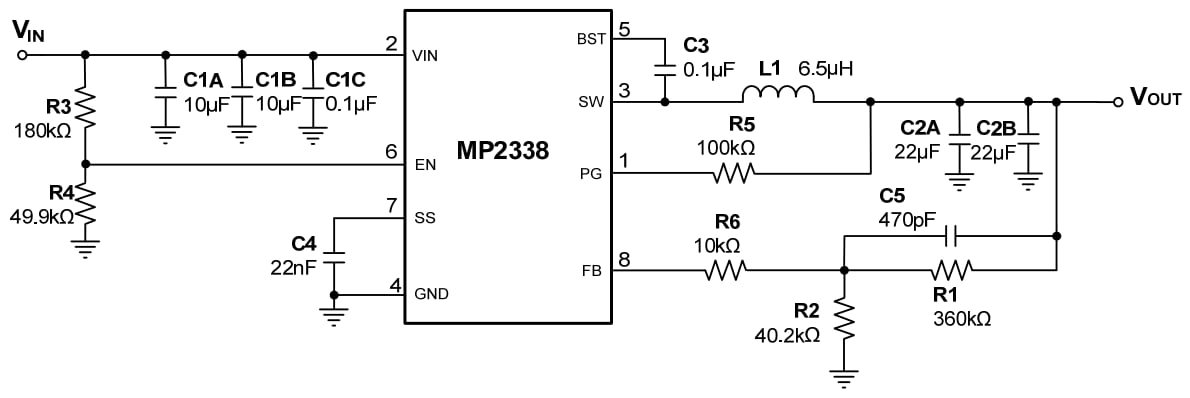

SCHEMATIC
