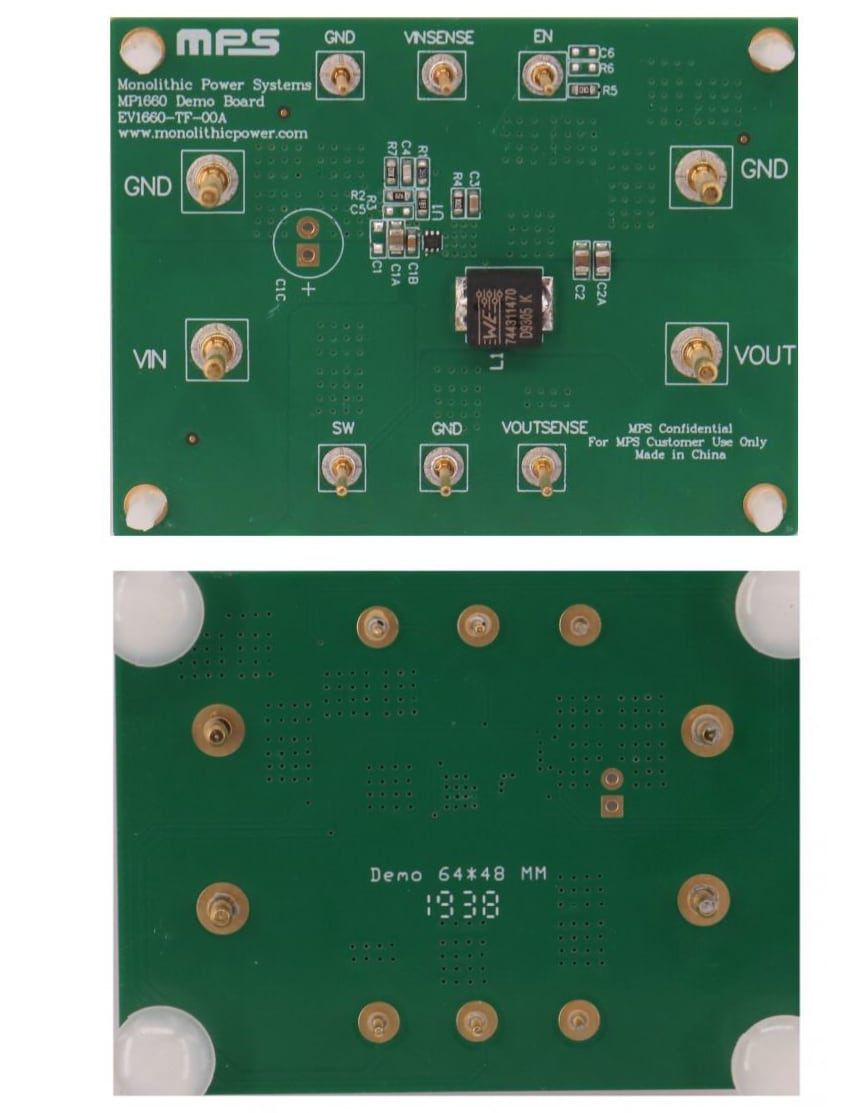

Monolithic Power Systems (MPS) EV1660-TF-00A Evaluation Board

Monolithic Power Systems (MPS) EV1660-TF-00A Evaluation Board is designed to demonstrate the capabilities of the MP1660 Step-Down Converters. The MP1660 Step-Down Converters are fully integrated, high-frequency, synchronous, rectified, step-down, switch-mode converters with internal power MOSFETs. The MP1660 provides excellent load and line regulation over a wide input range in a very compact solution that achieves a 3A output current.

Full protection features include short-circuit protection (SCP), over-current protection (OCP), under-voltage protection (UVP), and thermal shutdown.

Features

Wide 4.5V to 16V operating input range
110mΩ/60mΩ low R_DS(ON) internal power MOSFETs
190µA low I_Q
High-efficiency synchronous mode operation
Power-save mode at light-load
Fast load transient response

600kHz switching frequency
Internal Soft Start (SS)
Over-Current Protection (OCP) and hiccup mode
Thermal shutdown
Output adjustable from 0.6V
Available in a SOT563 (1.6mm x 1.6mm) package

Applications

Security cameras
Digital set-top boxes

Flat-panel televisions and monitors
General purposes

Monolithic Power Systems (MPS) EV1660-TF-00A Evaluation Board

Features

Applications

Overview

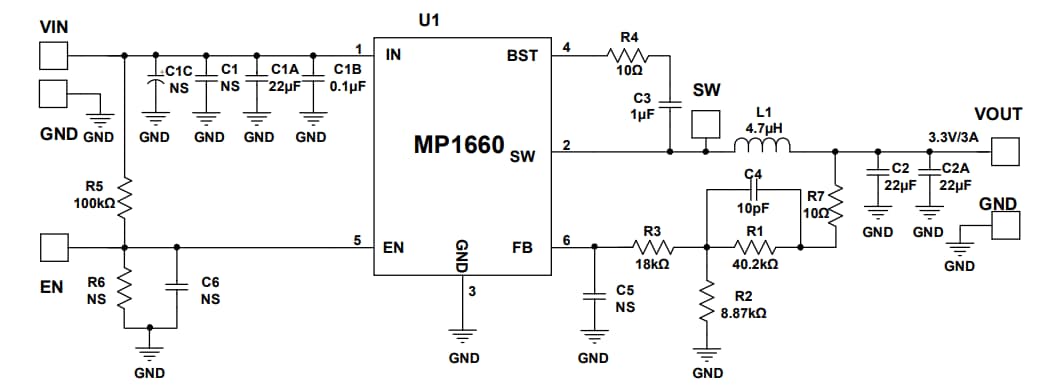

Schematic
