Molex SMP-MAX and SMP-MAX EVO 50Ω RF Connectors

Molex SMP-MAX and SMP-MAX EVO 50Ω RF Connectors are board-to-board and board-to-filter RF connectors with a wide operating frequency range from DC to 10GHz. These subminiature connectors feature push-on and snap coupling options and configurations in both surface mount and through-hole mounting options. High power ratings of up to over 300W at 2.7GHz provide excellent performance for RF amplifiers. Molex SMP-MAX and SMP-MAX EVO 50Ω RF Connectors are suitable for a variety of telecommunications and networking applications, including base stations, radio heads, repeaters, and system modules.

Features

Wide operating frequency range of DC to 10GHz
Optional adapter lengths of 6.20mm to 67.45mm
Push-on and snap coupling options
Through-hole and surface-mount options are available
Rugged construction @ 4GHz
SMP-MAX power handling:
- >300W at 2.7GHz and 25°C
- >200W at 2.7GHz and 85°C

SMP-MAX EVO power handling:
- 30W at 125°C average
- 150W at 125°C peak
Subminiature connector

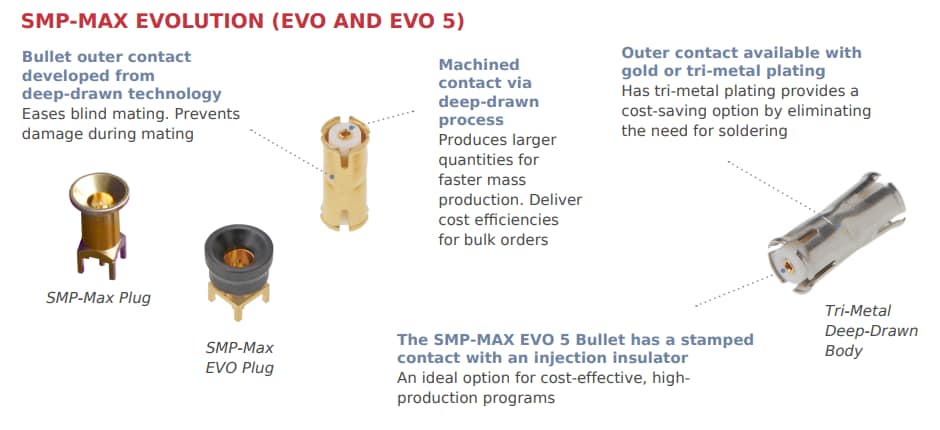

SMP-MAX EVO features
- PCB-type body machined from brass to black PA
- Less machine brass material used

Applications

Base stations
Radio heads
System modules
Radio modules

Small cells
Repeaters
5G Massive MIMO

Specifications

>7N center contact retention force
Engagement force (typical):
- 45N detent (snap-on)
- 14N smooth bore
Disengagement force (typical):
- 9 to 45N detent (snap on)
- 9N smooth bore
100-cycle minimum connector durability

50Ω nominal impedance
330V_RMS max voltage
DC to 10GHz frequency rating
Brass/Beryllium copper housing
Brass male center contact
Beryllium copper female center contact
PEEK or teflon insulator
-55° to +165° operating temperature
