Molex Single-Pair Ethernet Connectors & Cable Assemblies

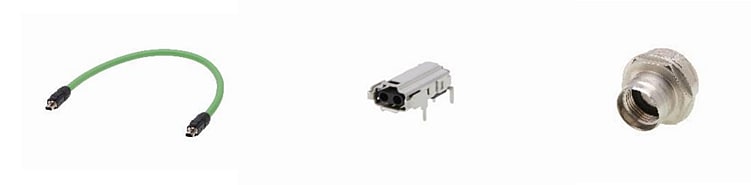

Molex Single-Pair Ethernet (SPE) Connectors and Cable Assemblies feature a standard T1 industrial interface and single-twisted-pair cabling. The SPE 220957 series provides IP20-rated plug, jack, and cable assemblies and enables easy Ethernet connectivity while supporting miniaturization. Molex SPE Connectors and Cable Assemblies facilitate data transmission from the cloud to devices and sensors using only two wires. The connectors and cable assemblies provide end-to-end TCP/IP-based communication, which permits a barrier-free connection of equipment with sensor/actuator technology. The SPE series connectors and cables can withstand harsh industrial environments and are ideal for industrial automation, Internet of Things (IoT), and commercial vehicle applications.

Features

IP20-rated plug, jack, and cable assemblies
Enables easy-to-implement wire-to-board connectivity
Shielding ensures superior signal integrity performance
Enables data transmission using only two wires
End-to-end TCP/IP-based communication

Permits barrier-free equipment connection
Oil-resistant design
Withstands harsh industrial environments
Halogen free

Applications

Industrial automation
- Smart sensors
- Valves
- Actuators
- Drives
- Control panels
- Process automation/control
- Factory automation
- Machine-to-machine communication
- Robotics

Commercial vehicles/railways
IoT
- Building automation
- Intelligent lighting systems/networks
- Elevator/escalator control systems
- Security/access control systems
- Fire alarms

Specifications

4A rated current at 60°C
60V_DC rated voltage
1KV_DC, 2.25kV_DC test voltage UDC
≤20mΩ contact resistance
≤100mΩ shielding resistance

Two industrial pin-socket contacts
Two contact points per contact
1000 min mating cycles
IEC 60529 degree of protection
-40°C to +85°C temperature range
