Molex Quad-Row Board-to-Board Connectors

Molex Quad-Row Board-to-Board Connectors offer a pitch of 0.175mm, a 3A current rating, and a compact design for space-constrained applications. These connectors feature an armored and insert-molded nail design that provides robustness and protection in the interior cover. The quad-row connectors have LCP UL 94V-0 housing, copper alloy contacts, and an operating temperature range of -40°C to +85°C. Molex Quad-Row Board-to-Board Connectors are suitable for smartphones, wearable devices, drones, patient-monitoring systems, aircraft avionics, smart home devices, and unmanned vehicles.

Features

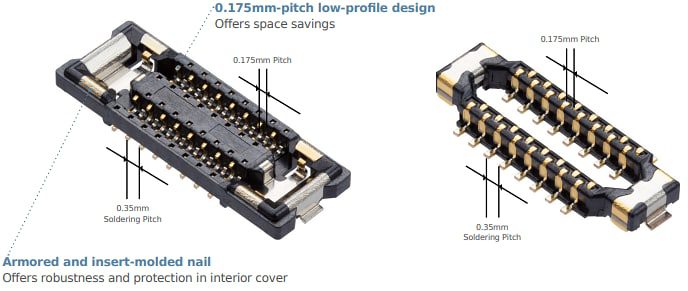

Armored and insert-molded nail
High performance
Robust design
Reliability
Easy operability

World’s smallest board-to-board connector
3.0A of current in highly compact package
First-ever staggered circuit layout connector
30% space savings over conventional connector designs

Applications

Consumer
- Smartphones
- Tablet PCs
- Wearable devices
- Portable audio and navigation equipment
- IoT and smart home devices
- AR/VR devices
- Drones

Medical
- Patient monitoring systems
- Therapeutic and surgical equipment
Defense
- Unmanned vehicles
- Aircraft avionics

Specifications

0.175mm pitch
3A current rating
32 to 36 circuits
50V voltage rating
250V dielectric withstanding voltage
100MΩ insulation resistance

0.60mm mated height
2.0mm width
30 cycles of durability
LCP UL 94V-0 housing
Copper alloy contacts
-40°C to +85°C operating temperature range
