Molex On-Metal Wi-Fi Antenna

Molex On-Metal Wi-Fi Antenna is a metal surface-mount antenna that allows mounting directly on the metal surface without compromising RF performance. This off-the-shelf 2.4GHz / 5GHz external antenna is designed for the Internet of Things (IoT) applications. Molex On-Metal Wi-Fi Antenna features 2.0W RF power, 50Ω impedance, and 2.0dBi / 5.5dBi peak gain.

Features

Metal surface mount allows mounting directly on the metal surface without compromising RF performance
Wi-Fi antenna (BT, DSRC, and Wi-Fi protocols)
Omnidirectional radiation pattern

Mates with U.FL/I-PEX MHF connector
Linear polarization
300mm cable length

Applications

Connected home
- Security and surveillance
- Home automation
- Home streaming
- Entertainment
- Smart appliances
- Energy and utilities

IoT
- Wireless solutions
- Smart factories / industries / cities
- IoT and IT infrastructure
Telecommunications / networking
Commercial vehicles

Specifications

2.4GHz/5.8GHz frequency
2.0W RF power
<-6dB return loss
>50%/>45% average total radiation efficiency

2.0dBi/5.5dBi peak gain
50Ω impedance
-40°C to +85°C operating temperature range

Videos

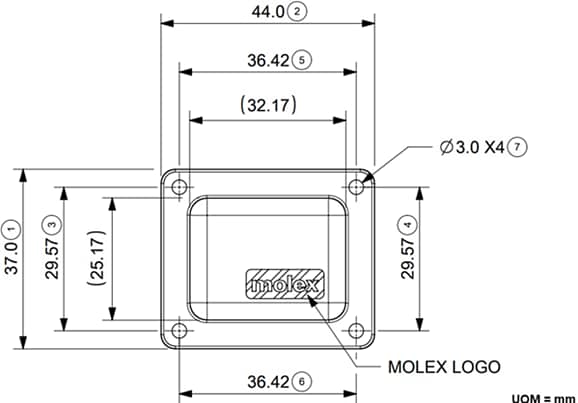

Dimensions
