Molex Micro-One Wire-to-Board Connectors with ISL

Molex Micro-One Wire-to-Board Connectors with Integrated Independent Secondary Lock (ISL) ensure proper terminal insertion and prevent accidental back-outs. These features allow the Micro-One Wire-to-Board Connectors to achieve a secure electrical contact and improved mating retention in high-vibration applications. The series features a 2.00mm pitch low-profile design and high-reliability UL/CSA certified connectors. Molex Micro-One with ISL offers 250V maximum voltage, 4.0A maximum current, and 30 cycles minimum durability.

Features

2.00mm pitch low-profile design
UL/CSA certified connectors ensure reliability
ISL detects incomplete terminal insertion
2- to 8-circuit vertical and right-angle head assemblies

Terminal position assurance option also available
Potting-capable headers available
Glow wire capable
Natural and black housings available for color coding

Applications

Industrial
- Power tools
- Test equipment
  Robots
- Factory automation
- Drones
- Vending machines

Consumer
- Refrigerators
- Air conditioners
- Hot water gas heaters
- Washing machines

Specifications

250V maximum voltage
4.0A maximum current (2 circuit, 22AWG)

30 cycles minimum durability
-40°C to +105°C operating temperature range

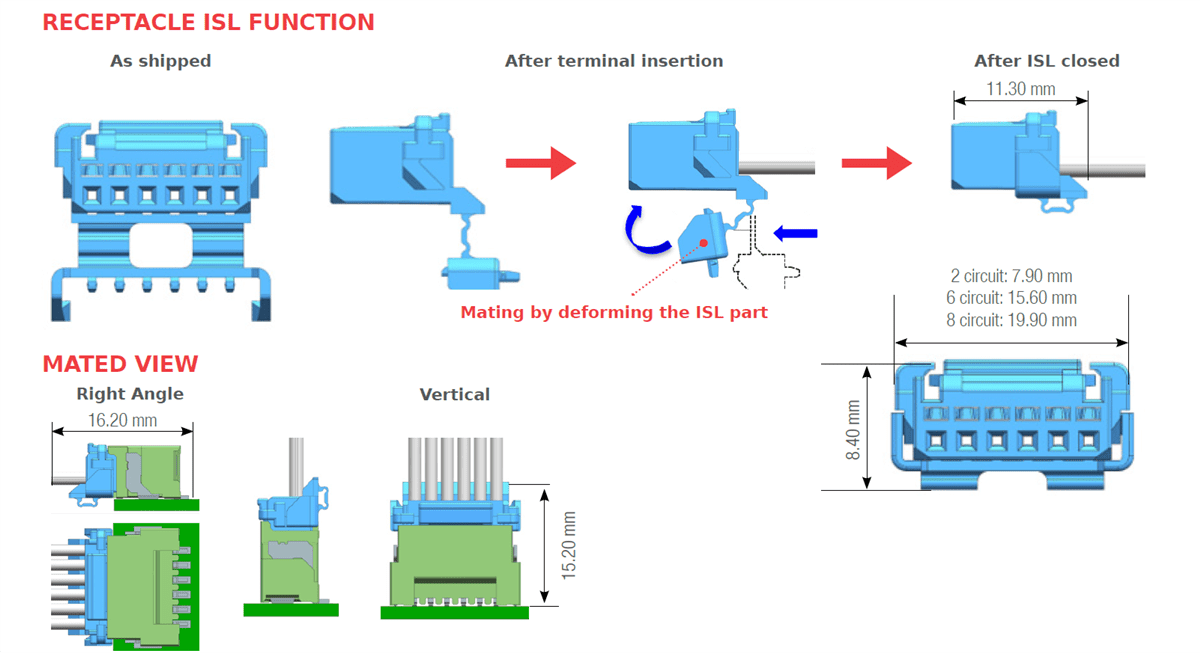

ISL Function and Mated View

Chart - Molex Micro-One Wire-to-Board Connectors with ISL
