Molex Brad M12 Power L-Code Connector Systems

Molex Brad M12 Power L-Code Connector Systems deliver up to 16A current per pin at 63V AC or DC. These M12 connector systems feature a -25°C to +85°C operating temperature range, >108Ω insulation resistance, 2.50mm² thick wires, and <5mΩ contact resistance. Molex M12 power L-code connectors provide an IP67-sealed interface and meet PROFIBUS and PROFINET International (PI) standards for PROFINET systems. Typical applications include power supplies of decentralized I/O, field-bus-controlled I/O boxes, small server/DC motors and drives, machine tools, presses, molding, stamping, and automotive plants.

Features

Delivers 4x the power of standard M12 connectors
Allows installations over longer distance and reduced voltage drop due to 2.50mm² thick wires
Enhances operator safety by eliminating the chance of electrical shock due to exposed pins
L-code mating interface
4 or 5 poles

IP67-sealed interface
- Includes dust-proof connector that can be temporarily submerged in up to 1m of water
- Provides sealed connection ideal for use in harsh and wet industrial environments
RoHS compliant and 61076-2-111 IEC standard

Applications

Power supplies of decentralized I/O
Field-bus-controlled I/O boxes
Small server/DC motors and drives

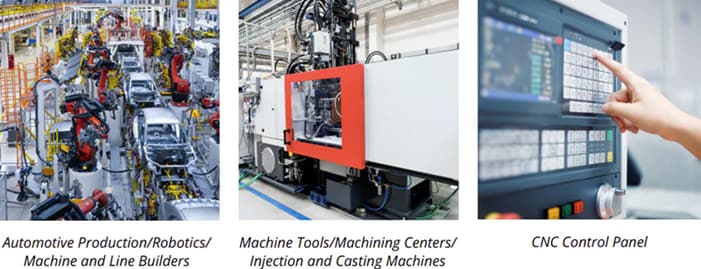

Machine tools, presses, molding, and stamping
Automotive plants

Specifications

63V maximum voltage
12A per pin maximum current (1.50mm² wires) and 16A per pin (2.50mm² wires)

<5mΩ contact resistance
>108Ω insulation resistance
-25°C to +85°C operating temperature range
