Mini-Circuits ZX75BP Lumped Coaxial (LC) Bandpass Filters

Mini-Circuits ZX75BP Lumped Coaxial (LC) Bandpass Filters feature 50Ω bandpass filters in a connector-based package within a 60MHz to 490MHz frequency range. The filters offer 1.8dB to 4dB max insertion loss and 0.5W input power at 25°C. Mini-Circuits ZX75BP LC Bandpass Filters provide improved matching in the pass band and high rejection in the stop band. The filters are ideal for various applications, including communication, military, broadcasting, and medical.

Features

1.8dB to 4dB max insertion loss
50Ω impedance
60MHz to 490MHz frequency range

0.5W input power at 25°C
-40°C to +85°C operating temperature range
-55°C to +100°C storage temperature range

Applications

Aircraft communication
FM communication
VHF communication
SATCOM communication
Harmonic rejection
Military radar
Maritime mobile

Space research
Defense system
Satellite
Auxiliary broadcasting
Biomedical telemetry devices
Private/public land mobile
Digital television

Mini-Circuits ZX75BP Lumped Coaxial (LC) Bandpass Filters

Features

Applications

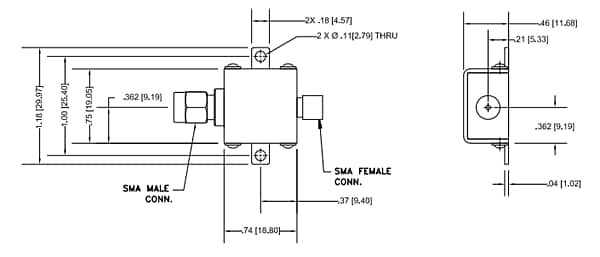

Product Overview

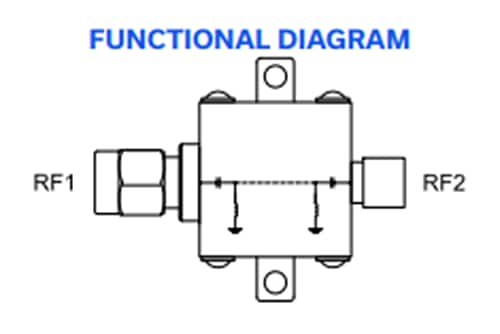

Functional Diagram
