Mini-Circuits ZN4PD1 50Ω DC Pass Power Splitters/Combiners

Mini-Circuits ZN4PD1 50Ω DC Pass Power Splitters/Combiners offer 250mA DC current for each port and a 250MHz to 6000MHz frequency range. The ZN4PD1 components feature power handling up to 30W, low insertion loss, and an operating temperature range of -55°C up to +100°C. Mini-Circuits ZN4PD1 Power Splitters/Combiners are ideal for LTE, BLUETOOTH®, ISM, and test/measurement applications.

Features

Power handling
- 0.5W to 2.0W maximum as a combiner
- 10W to 30W as a splitter
250MHz to 6000MHz frequency band
0.6dB to 1.0dB typical insertion loss range
1.0A_DC current (250mA for each port)

50Ω impedance
1° or 2° typical phase unbalance
0.1dB tor 0.2dB typical amplitude unbalance
-55°C up to +100°C operating temperature range
UU846/-4/-5 case styles
RoHS compliant

Applications

ISM
Test and measurement
Lab
LTE

Wi-Fi®
BLUETOOTH®
High band PCS
UNII

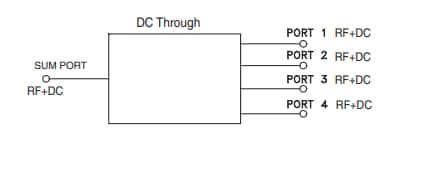

Electrical Schematic
