Mini-Circuits ZFDC Coaxial 50Ω Directional Couplers

Mini-Circuits ZFDC Coaxial 50Ω Directional Couplers provide wideband performance from an overall range of 0.1MHz to 2000MHz with 17dB to 30dB directivity. The ZFDC components are packaged in a rugged shielded case with a K18 case style. Mini-Circuits ZFDC Coaxial 50Ω Directional Couplers operate in a -55°C to +100°C temperature range and are ideal for communication receivers/transmitters, cellular, and instrumentation applications.

Features

Wideband range
- 0.1MHz to 2000MHz (ZFDC-20-5+)
- 1MHz to 2000MHz (ZFDC-10-5+)
- 20MHz to 2000MHz (ZFDC-6-23-S+ and ZFDC-20-50+)

17dB to 30dB directivity
Rugged shielded case
-55°C to +100°C temperature range
RoHS compliant

Applications

Cellular
Instrumentation

Communication receivers and transmitters
GPS (except ZFDC-20-5+)

Mini-Circuits ZFDC Coaxial 50Ω Directional Couplers

Features

Applications

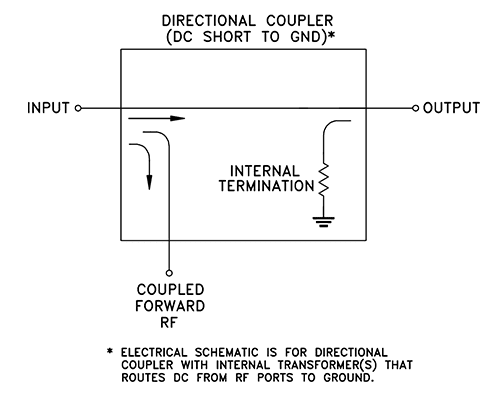

Electrical Schematic
