Mini-Circuits TSS2 Low-Noise Bypass Amplifiers

Mini-Circuits TSS2 Low-Noise Bypass Amplifiers are created using E-pHEMT technology within a 2mm x 2mm 8-lead QFN-style package. The amplifiers feature a wide 500MHz to 5000MHz frequency range and very fast bypass switching. The TSS2 series has minimal external matching components. Mini-Circuits TSS2 Low-Noise Bypass Amplifiers offer a low noise figure, high gain rating, and high IP3 rating. The amplifiers provide improved input and output loss, which is ideal for 5G MIMO, back-haul radio systems, test/measurement equipment, radar, electronic warfare (EW), electronic content management (ECM), and defense system applications.

Features

500MHz to 5000MHz wideband frequency range
Minimal external matching
High dynamic range

Internal bypass switch feature
Built-in DC blocking cap
2mm x 2mm x 0.9mm compact dimensions

Applications

5G MIMO
Back-haul radio systems
Test and measurement equipment

Radar
EW
ECM
Defense systems

Specifications

1.3dB typical noise figure
22.6dB to 18.6dB typical gain
11.5dB to 16.1dB typical input return loss
10.4dB to 22.4dB typical output return loss

18.3dBm to 19.6dBm typical output power at 1dB compression
0.7W total power dissipation
-45°C to +85°C operating temperature range
-65°C to +150°C storage temperature range

Mini-Circuits TSS2 Low-Noise Bypass Amplifiers

Features

Applications

Specifications

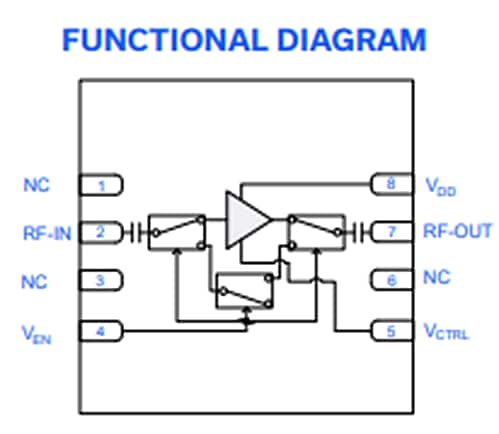

Functional Diagram
