Mini-Circuits SMPM Coaxial RF Adapter

Mini-Circuits SMPM Coaxial RF Adapter offers a length of only 0.71″ and a full detent SMP male to SMA female connector designed to MIL-STD-348B standards. This straight adapter supports a wide range of applications from DC to 27GHz. The component provides a low 0.01dB typical insertion loss vs. frequency and an excellent voltage standing wave ratio (VSWR) of 1.05:1 typical. Mini-Circuits SMPM Coaxial RF Adapter features passivated stainless steel construction and is RoHS compliant.

Features

Full detent SMP male to SMA female
Wideband frequency
Low insertion loss
Excellent VSWR

Passivated stainless steel construction
Straight orientation
MIL-STD-348B connector standard
RoHS compliant

Specifications

0.71” length
DC to 27GHz frequency range
0.01dB typical insertion loss

1.05:1 typical VSWR
50Ω impedance
-55°C to +105°C operating case temperature range

Mini-Circuits SMPM Coaxial RF Adapter

Features

Specifications

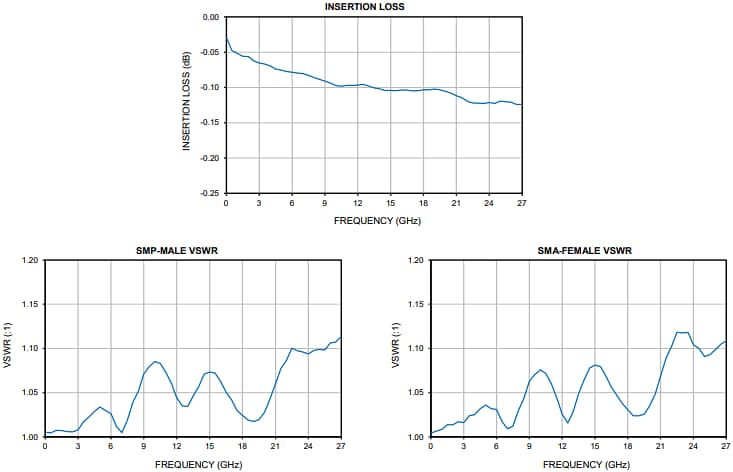

Typical Performance Graphs
