Mini-Circuits SMPF Coaxial RF Adapter

Mini-Circuits SMPF Coaxial RF Adapter features a length of only 0.7″ and an SMP female to SMA female connector designed to MIL-STD-348B standards. This straight adapter supports a broad range of applications from DC to 27GHz. The component provides an excellent voltage standing wave ratio (VSWR) of 1.09:1 typical and low 0.11dB typical insertion loss vs. frequency. Mini-Circuits SMPF Coaxial RF Adapter has passivated stainless-steel construction and is RoHS compliant.

Features

SMP female to SMA female
Wideband frequency
Low insertion loss
Excellent VSWR

Passivated stainless-steel construction
Straight orientation
MIL-STD-348B connector standard
RoHS compliant

Specifications

0.7″ length
DC to 27GHz frequency range
0.11dB typical insertion loss

1.09:1 typical VSWR
50Ω impedance
-55°C to +105°C operating case temperature range

Mini-Circuits SMPF Coaxial RF Adapter

Features

Specifications

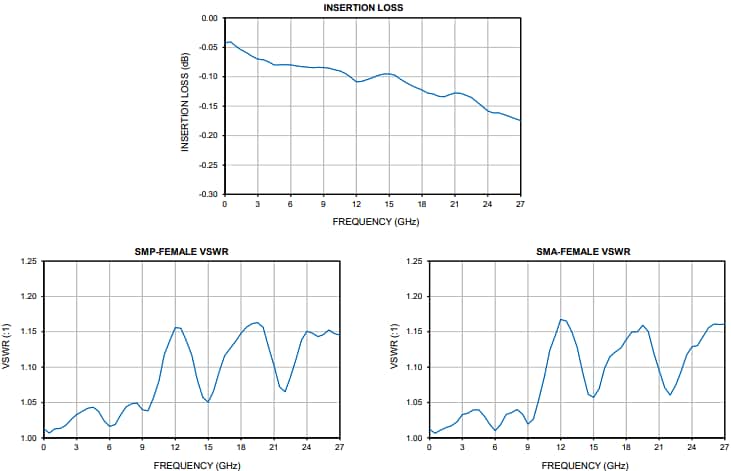

Typical Performance Graphs
