View Datasheet

Mini-Circuits SF-SM50-27+ SMA-Female to SMA-Male Coaxial Adapter

Mini-Circuits SF-SM50-27+ 50Ω SMA-Female to SMA-Male Coaxial Adapter supports various applications from DC to 27GHz. This model provides excellent VSWR and low insertion loss versus frequency. The Mini-Circuits SF-SM50-27+ features passivated stainless-steel construction and measures only 0.72” in length.

Features

  • Wideband of DC to 27GHz
  • A low insertion loss of 0.05dB (typ.)
  • Excellent VSWR of 1.08:1 (typ.)

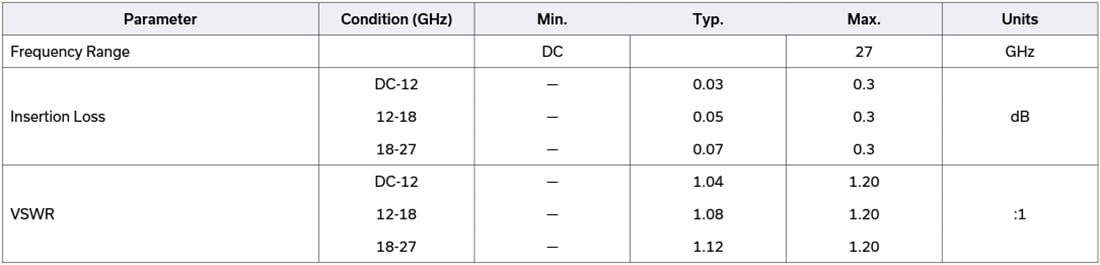

Electrical Specifications

Chart - Mini-Circuits SF-SM50-27+ SMA-Female to SMA-Male Coaxial Adapter

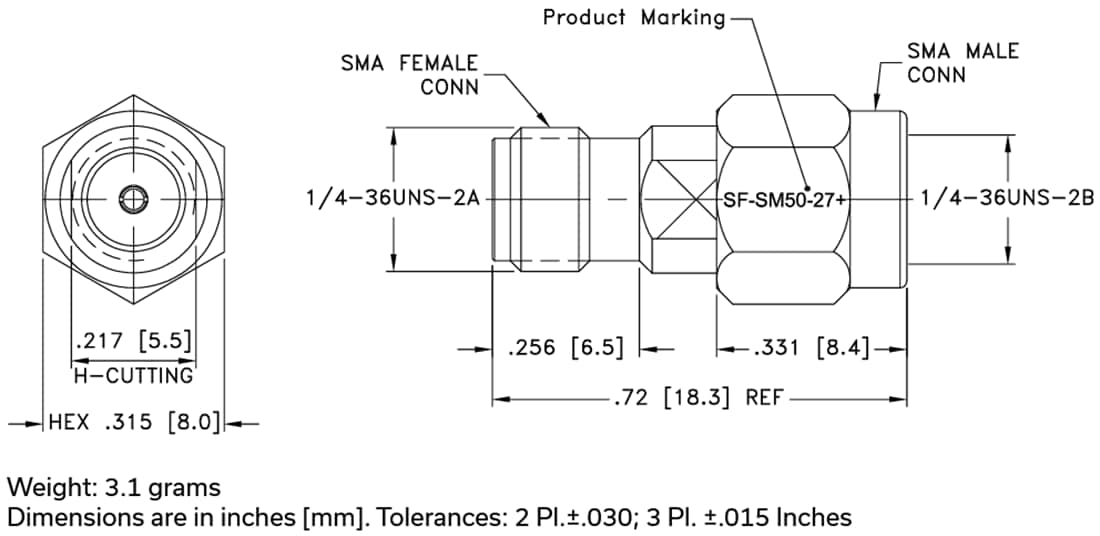

Case Style Drawing

Mini-Circuits SF-SM50-27+ SMA-Female to SMA-Male Coaxial Adapter
