Mini-Circuits SCW 2-Way-0° Ceramic Power Splitters/Combiners

Mini-Circuits SCW 2-Way-0° Ceramic Power Splitters/Combiners feature a compact design (1.6mm x 0.8mm package) with a 50Ω impedance with 2W maximum input power (as a splitter). These components span a 2400MHz to 7200MHz range in a -55°C to +125°C temperature range while offering outstanding phase and amplitude unbalance. The Mini-Circuits SCW components are fabricated using temperature-stable LTCC technology and are ideal for WLAN, LTE, 5G sub 6GHz, and cellular communications (depending on the model).

Features

50Ω impedance
Isolation resistor, external, 100Ω
Small size, 1.6mm x 0.8mm, JC0603C case style
ESD non-sensitive

Temperature stable LTCC technology
Wrap-around terminations for excellent solderability
RoHS compliant

Applications

WLAN
5G sub 6GHz

Cellular communications
LTE

Specifications

SCW-2-332+
- 2400MHz to 3300MHz range
- 0.7dB typical average insertion loss (above 3.0dB), 1dB maximum
- 12dB minimum isolation, 15dB typical
- 2° typical phase unbalance, 5° maximum
- 0.2dB typical amplitude unbalance, 0.5dB maximum
- 11dB typical input return loss
- 16dB typical output return loss
- -55°C to +125°C temperature range
- 2W maximum input power (as a splitter)
SCW-2-482+
- 3300MHz to 4800MHz range
- 0.7dB typical average insertion loss (above 3.0dB), 1dB maximum
- 12dB minimum isolation, 15dB typical
- 2° typical phase unbalance, 6° maximum
- 0.2dB typical amplitude unbalance, 0.5dB maximum
- 13dB typical input return loss
- 16dB typical output return loss
- -55°C to +125°C temperature range
- 2W maximum input power (as a splitter)

SCW-2-722+
- 4800MHz to 7200MHz range
- 1.2dB typical average insertion loss (above 3.0dB), 1.6dB maximum
- 12dB minimum isolation, 16dB typical
- 4° typical phase unbalance, 7° maximum
- 0.1dB typical amplitude unbalance, 0.5dB maximum
- 13dB typical input/output return loss
- -55°C to +125°C temperature range
- 2W maximum input power (as a splitter)

Mini-Circuits SCW 2-Way-0° Ceramic Power Splitters/Combiners

Features

Applications

Specifications

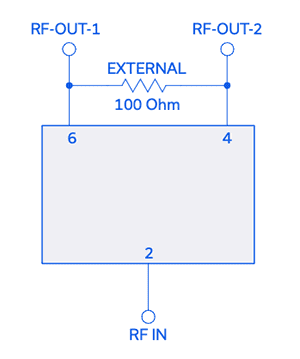

Electrical Schematic
