Mini-Circuits KMR-24F+ Right-Angle Coaxial Adapter

Mini-Circuits KMR-24F+ Right-Angle Coaxial Adapter converts a 2.4mm (F) connector to a 2.92mm (M) connector, with support for applications from DC to 40.0GHz. This device provides excellent VSWR (Voltage Standing Wave Ratio), low insertion loss, and flat response versus frequency. The KMR-24F+ features passivated stainless steel construction and a gold-plated beryllium copper construction center contact.

Features

  • Ultra-wideband, DC to 40.0GHz
  • Flat response
  • Converts 2.4mm (F) connector to a 2.92mm (M) connector
  • Excellent VSWR, 1.09:1 typical
  • Low insertion loss, 0.16dB typical
  • -55°C to +100°C operating temperature range
  • Passivated stainless steel construction and gold-plated beryllium copper center contact

Applications

  • RF cable and equipment connections
  • Broadband and multiband

Technical Resources

  • Typical Performance Data
  • Performance Graphs

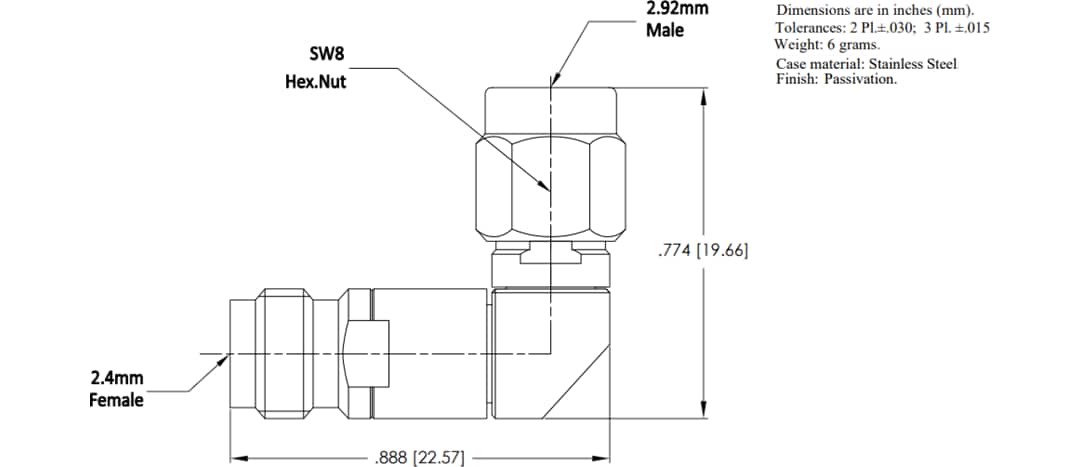

Outline Dimensions

Mechanical Drawing - Mini-Circuits KMR-24F+ Right-Angle Coaxial Adapter
